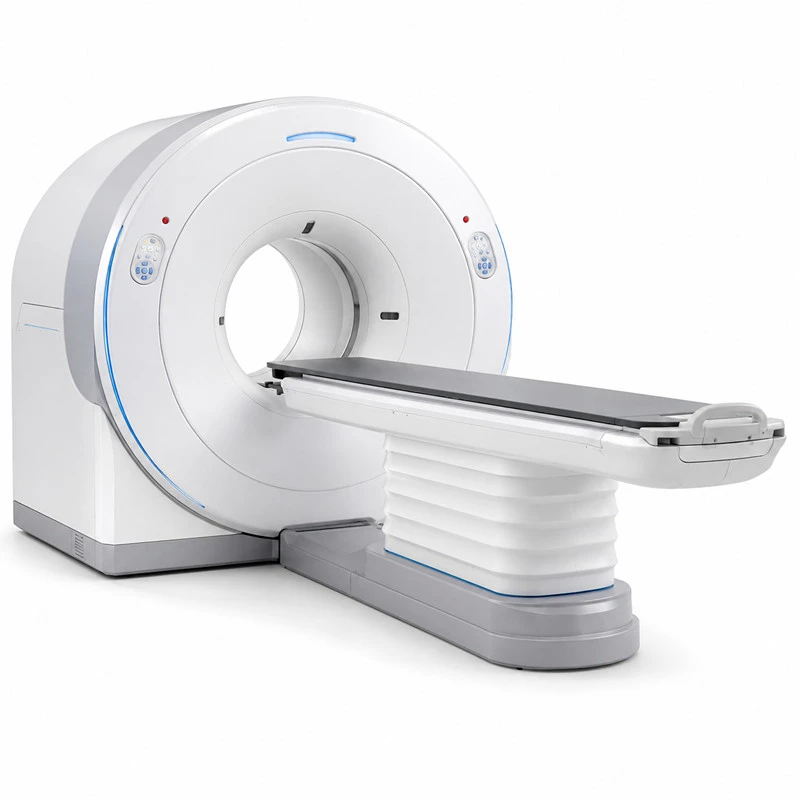

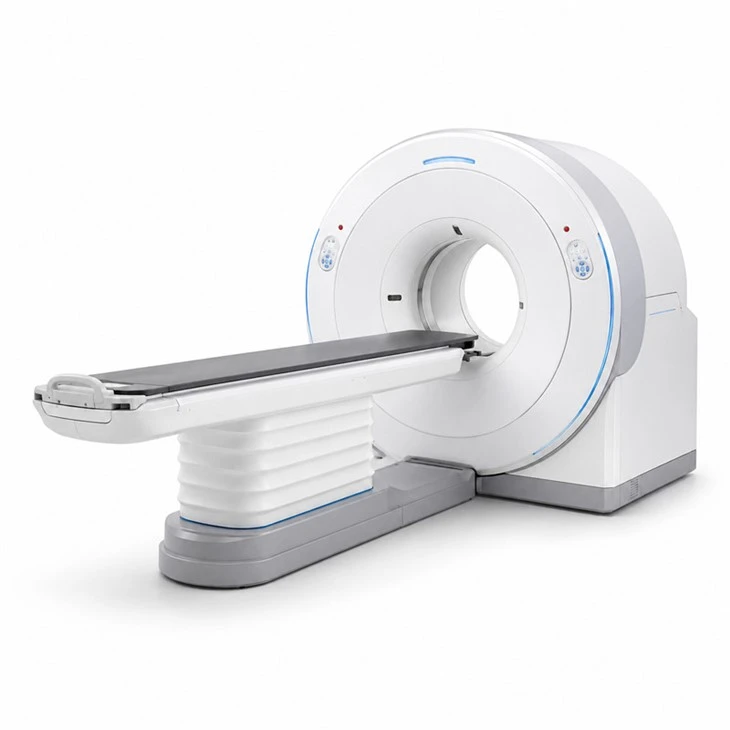

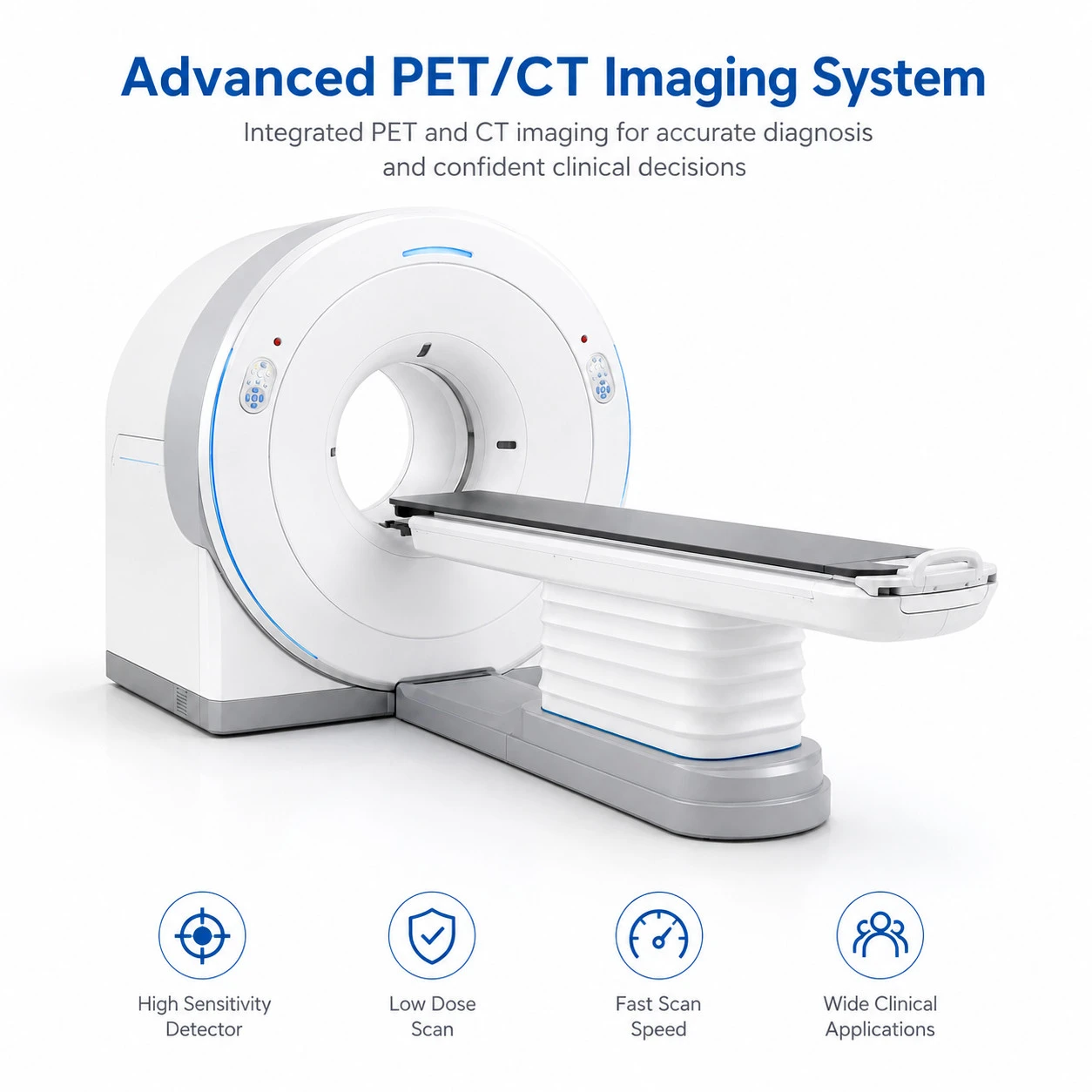

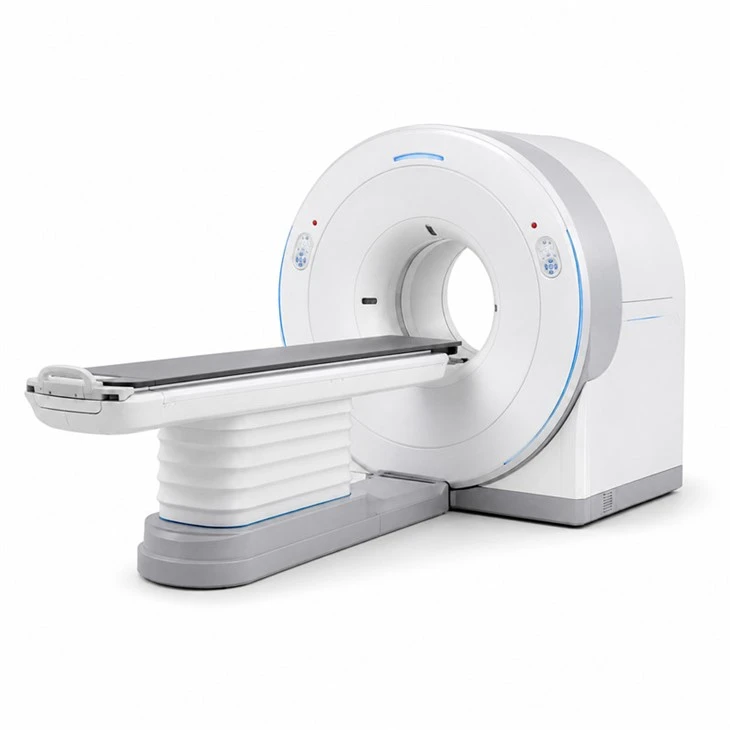

The PET/CT scanner is an integrated molecular and anatomical imaging system that combines positron emission tomography (PET) with multi-slice computed tomography (CT) in a single examination. PET provides functional and metabolic information, while CT supplies detailed anatomical localization, allowing fused images to support lesion detection, staging, treatment planning and follow-up. The system is designed for whole-body imaging and can support clinical applications in oncology, cardiology and neurology. A wide-bore gantry, high-capacity patient table, digital PET detector technology, time-of-flight imaging and low-dose CT reconstruction help improve workflow, image quality and patient comfort. Actual system configuration can vary by model and project requirements.
Product parameters
|
System Specifications |
|
|
System Type |
Integrated PET/CT Scanner |
|
Gantry Bore Diameter |
78 cm |
|
Tunnel Length |
136 cm |
|
Patient Table Capacity |
227 kg (500 lb) |
|
CT Slice Configuration |
64 / 128 slices |
|
CT Generator Power |
80 kW (100 kW optional) |
|
CT Tube Voltage |
70 / 80 / 100 / 120 / 140 kV |
|
CT Rotation Time |
0.33 s; 0.30 / 0.28 s optional |
|
PET Axial Field of View |
26.3 cm |
|
PET Detector |
LSO crystal with digital SiPM |
|
PET Crystal Size |
3.2 × 3.2 × 20 mm |
|
Time-of-Flight Performance |
Approx. 214 ps |
|
Typical Applications |
Oncology, Cardiology, Neurology, Whole-body Imaging |
|
Imaging / Workflow Feature |
Description |
|
PET/CT Image Fusion |
Combines metabolic PET information with CT anatomical localization |
|
Time-of-Flight PET |
Improves event localization and image contrast |
|
Low-Dose CT |
Supports dose-optimized CT acquisition and attenuation correction |
|
Iterative Reconstruction |
Helps reduce image noise while maintaining diagnostic detail |
|
Wide-Bore Design |
Provides more positioning space and improved patient access |
|
Whole-Body Imaging |
Suitable for multi-bed-position examinations and systemic assessment |
Product details
Integrated PET/CT Imaging

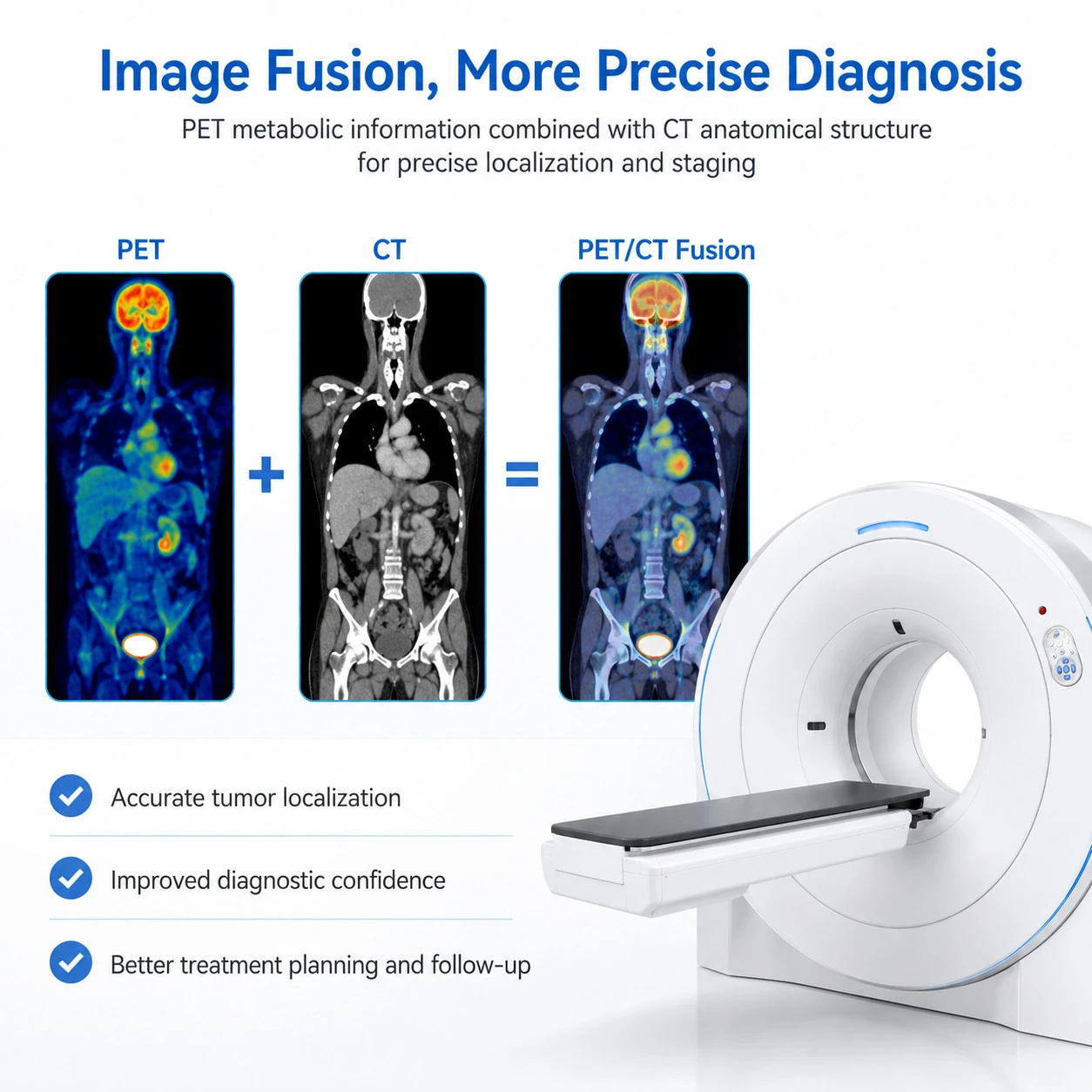

The system combines PET functional imaging and CT anatomical imaging in one platform. The fused PET/CT dataset helps localize areas of abnormal tracer uptake and correlate them with anatomical structures.
01
Digital PET Detector & Time-of-Flight
A digital SiPM-based PET detector with small LSO crystal elements supports high sensitivity and fast timing performance. Time-of-flight technology helps improve image contrast and lesion localization, especially in whole-body examinations.
02
Multi-slice CT Imaging
The CT subsystem supports 64- or 128-slice configurations with multiple tube-voltage selections and fast gantry rotation. Low-dose acquisition, iterative reconstruction and artifact-reduction functions can be configured to support diagnostic imaging and PET attenuation correction.
03

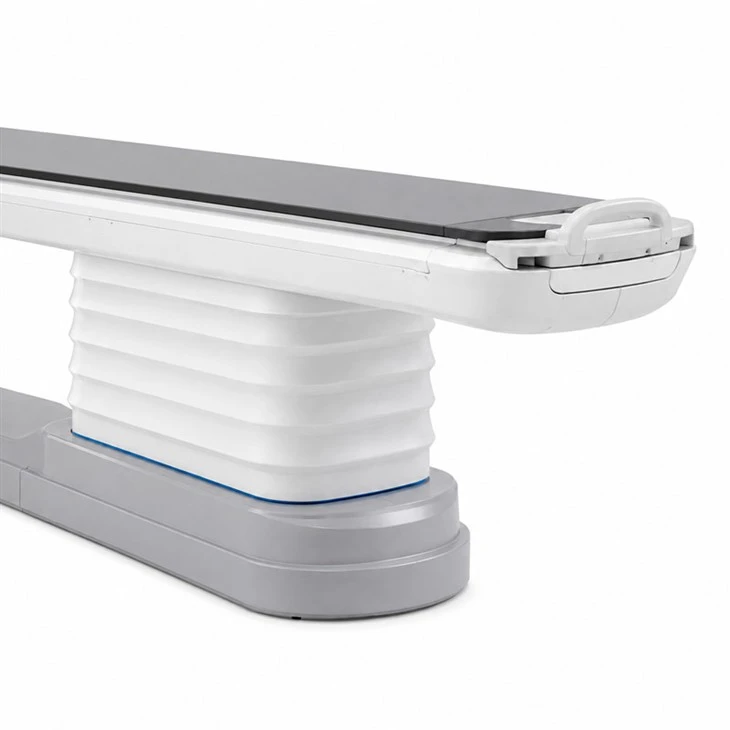

Wide-Bore Gantry & Patient Table

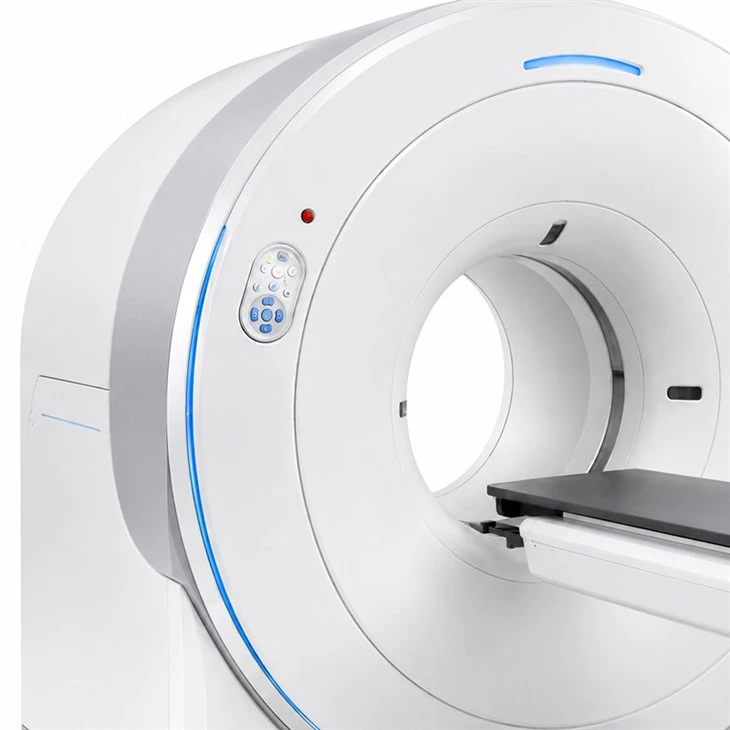

The 78 cm bore provides additional positioning space, while the patient table supports loads up to 227 kg. The open gantry design helps improve patient access and accommodates a wide range of examination requirements.
04
Clinical Applications

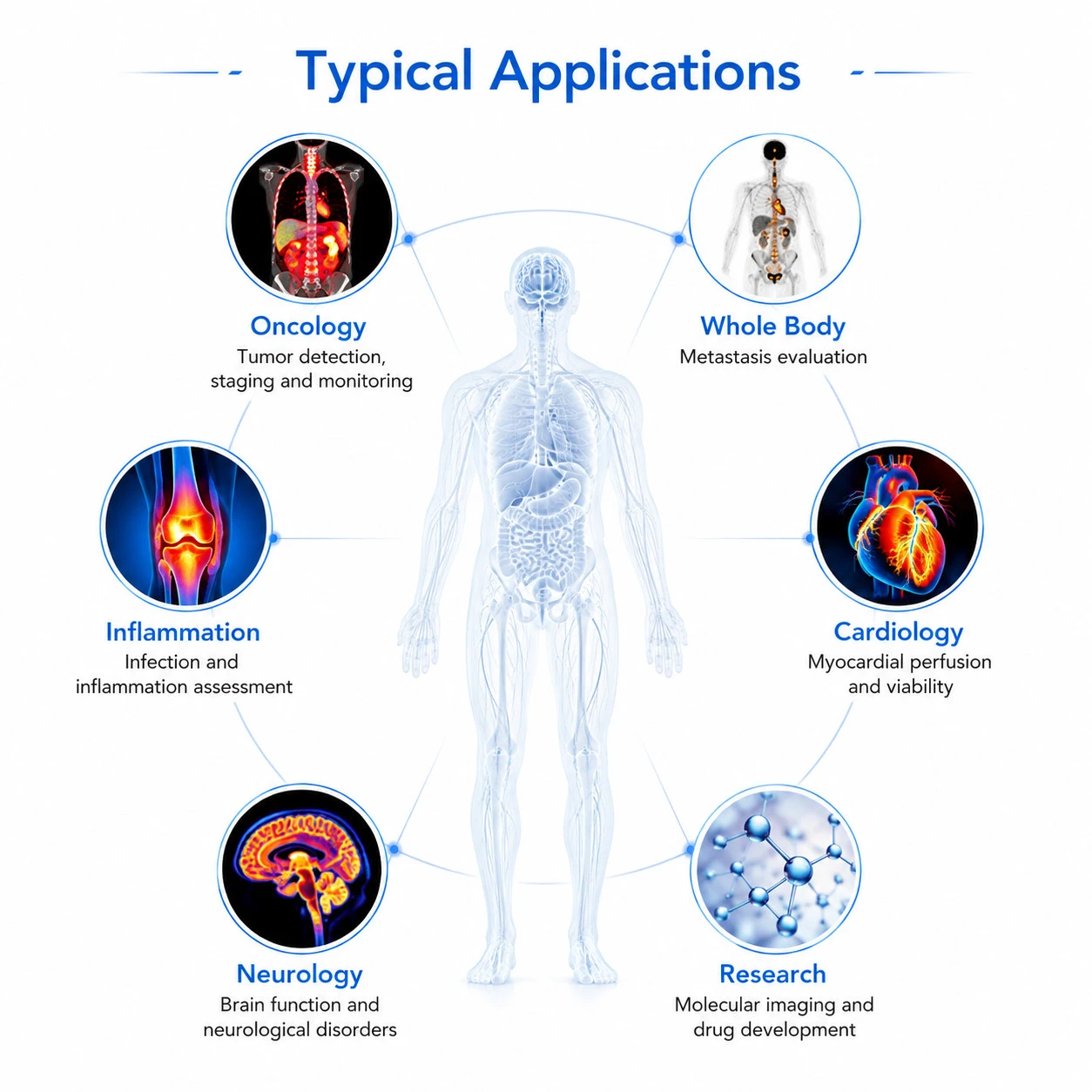

PET/CT is widely used for oncology imaging, including lesion detection, staging, treatment response evaluation and follow-up. It can also support cardiology, neurology and whole-body molecular imaging applications depending on the tracer, software package and local clinical protocol.
05
