The Ultrasound Smart Probe is a handheld wireless Color Doppler system for point-of-care, bedside and mobile imaging. The CMS1600A-type reference platform integrates the probe, processing electronics, rechargeable battery and Wi-Fi communication in one unit and displays real-time images through dedicated mobile software. It supports B, B/M, C and PW modes, patient management, cine-loop review, DICOM file storage and measurement functions. Wireless and Type-C charging support flexible clinical use. Final specifications may vary by probe configuration and OEM model.
Product parameters
|
Ultrasound Smart Probe Specifications |
|
|
System Type |
Wireless Handheld Dual-Probe Color Doppler Ultrasound System |
|
Reference Model |
CMS1600A-type configuration |
|
Imaging Modes |
B, B/M, C (Color), PW |
|
Wireless Connection |
Wi-Fi connection to dedicated control software |
|
Transmission Distance |
>= 10 m in an open area |
|
Charging Mode |
Wireless charging + wired Type-C charging |
|
Internal Power |
DC 3.8 V, 1350 mAh rechargeable battery |
|
Wireless Charger Output |
5 W |
|
Display / Control |
Full-screen display, image flip, 8-segment TGC adjustment |
|
Data Functions |
Patient management, cine-loop, DICOM file storage |
|
Interface / Platform |
USB interface; dedicated software for iOS / Android terminals |
|
Imaging / Workflow Feature |
Description |
|
Color Doppler Imaging |
Real-time color flow and pulsed-wave Doppler support bedside assessment |
|
Wireless Smart Workflow |
Wi-Fi connection enables cable-free image display on a mobile terminal |
|
Dual-Probe Design |
Handheld dual-probe architecture supports multiple clinical examination needs |
|
Measurement & Review |
Measurement tools, cine-loop and patient management support daily workflow |
|
DICOM Data Storage |
Supports DICOM file storage for image review and data management |
|
Portable Charging |
Wireless and Type-C charging support mobile clinical use |

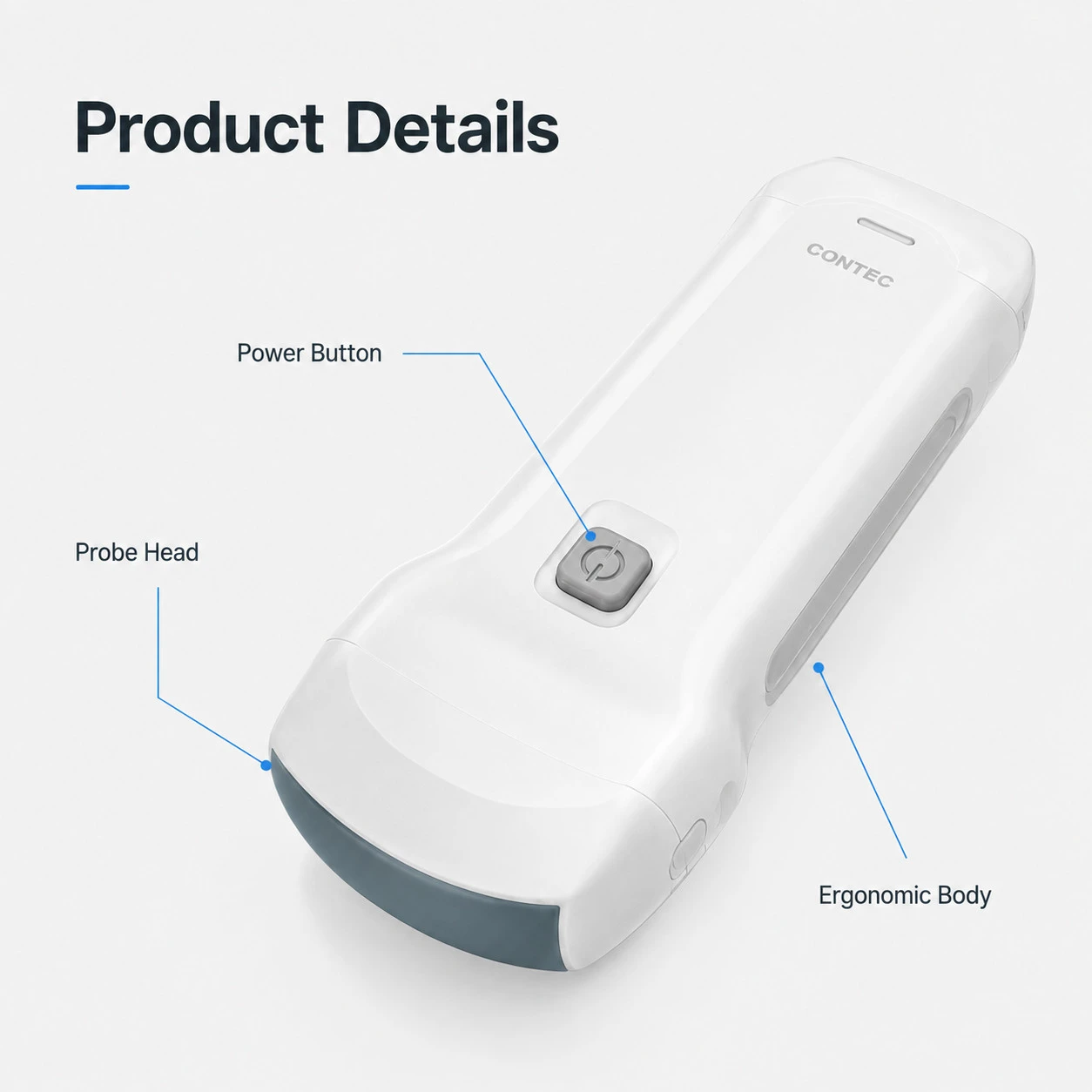

Product details

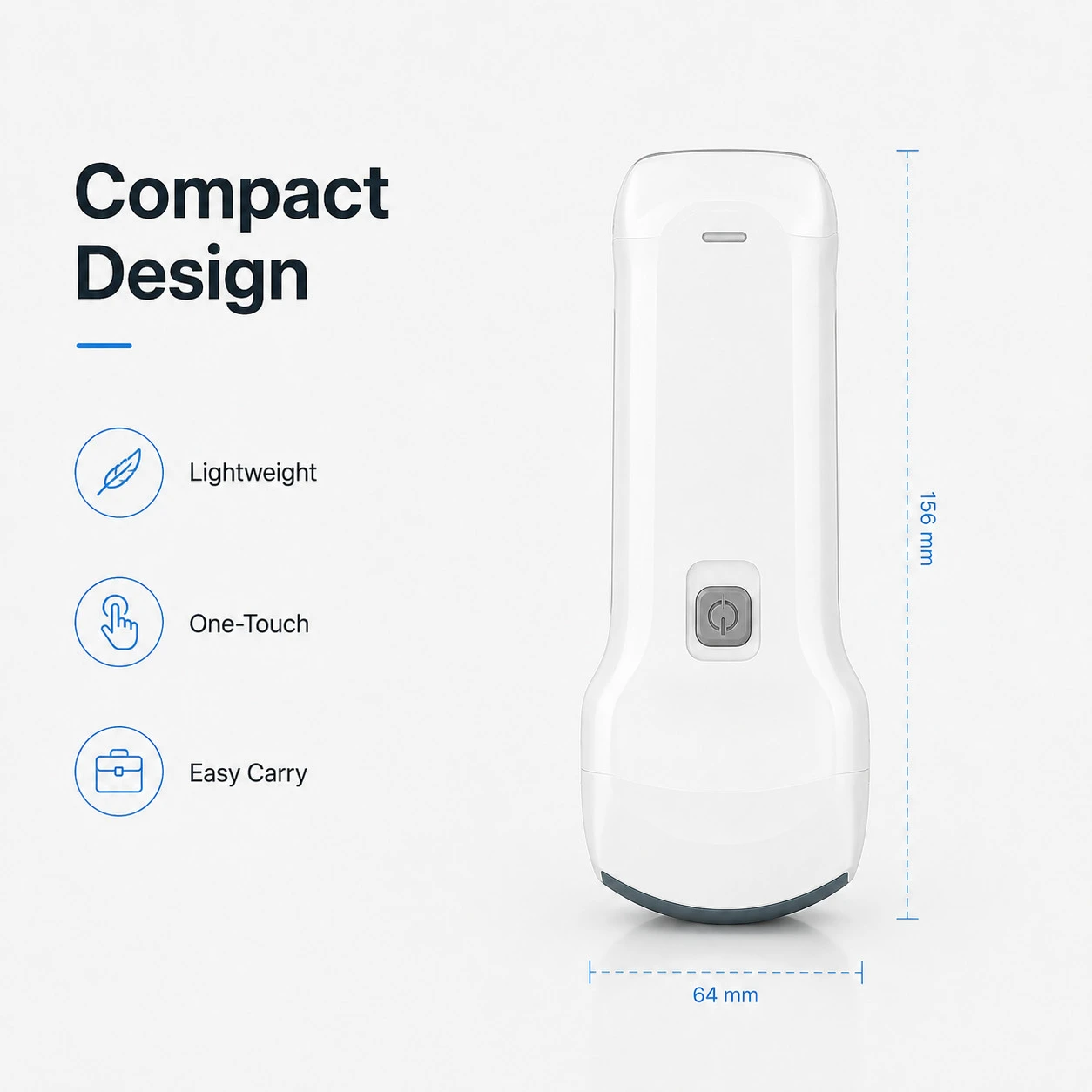

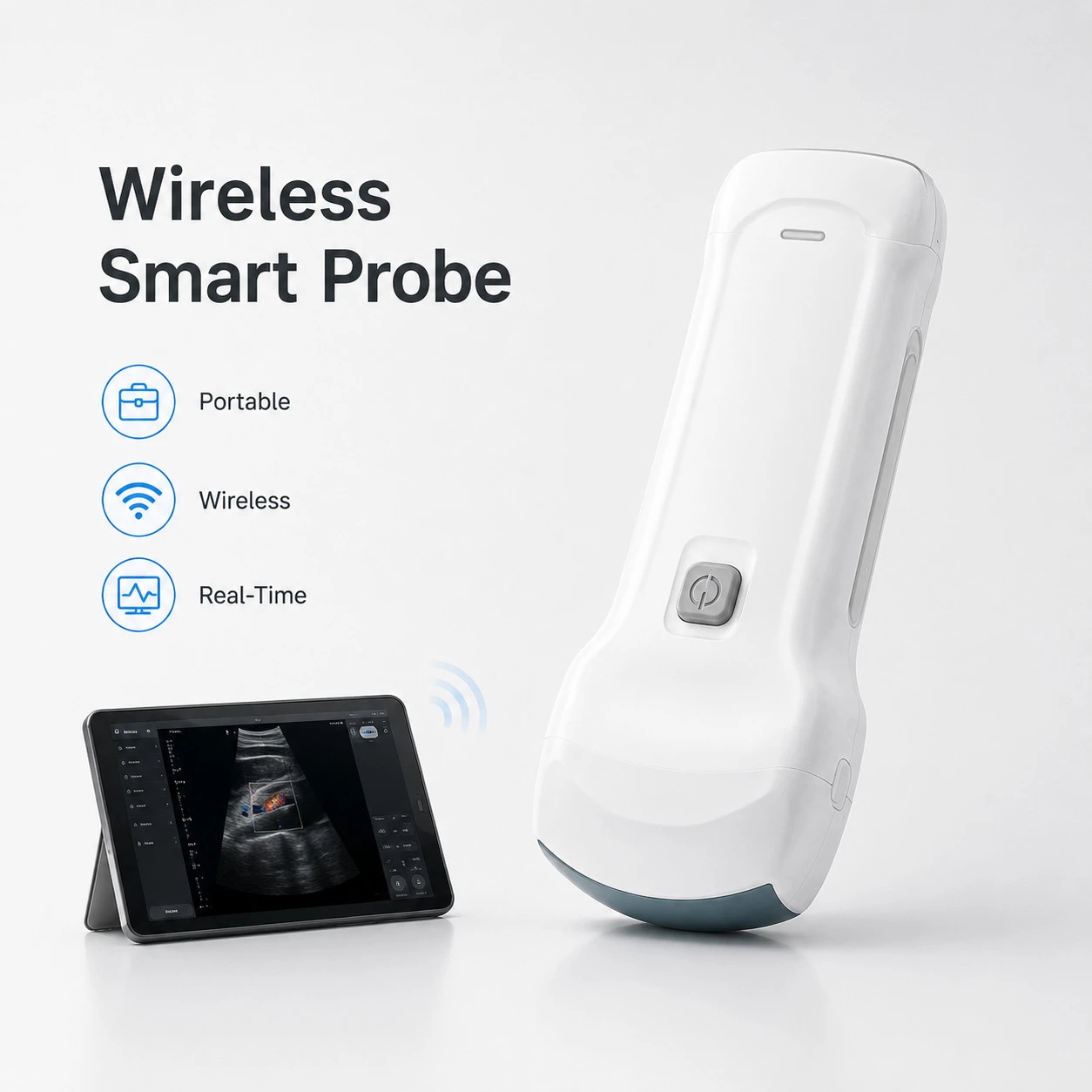

Compact Wireless Handheld Design
The probe combines ultrasound acquisition, processing, battery power and Wi-Fi communication in a compact body, reducing cables and supporting point-of-care use.

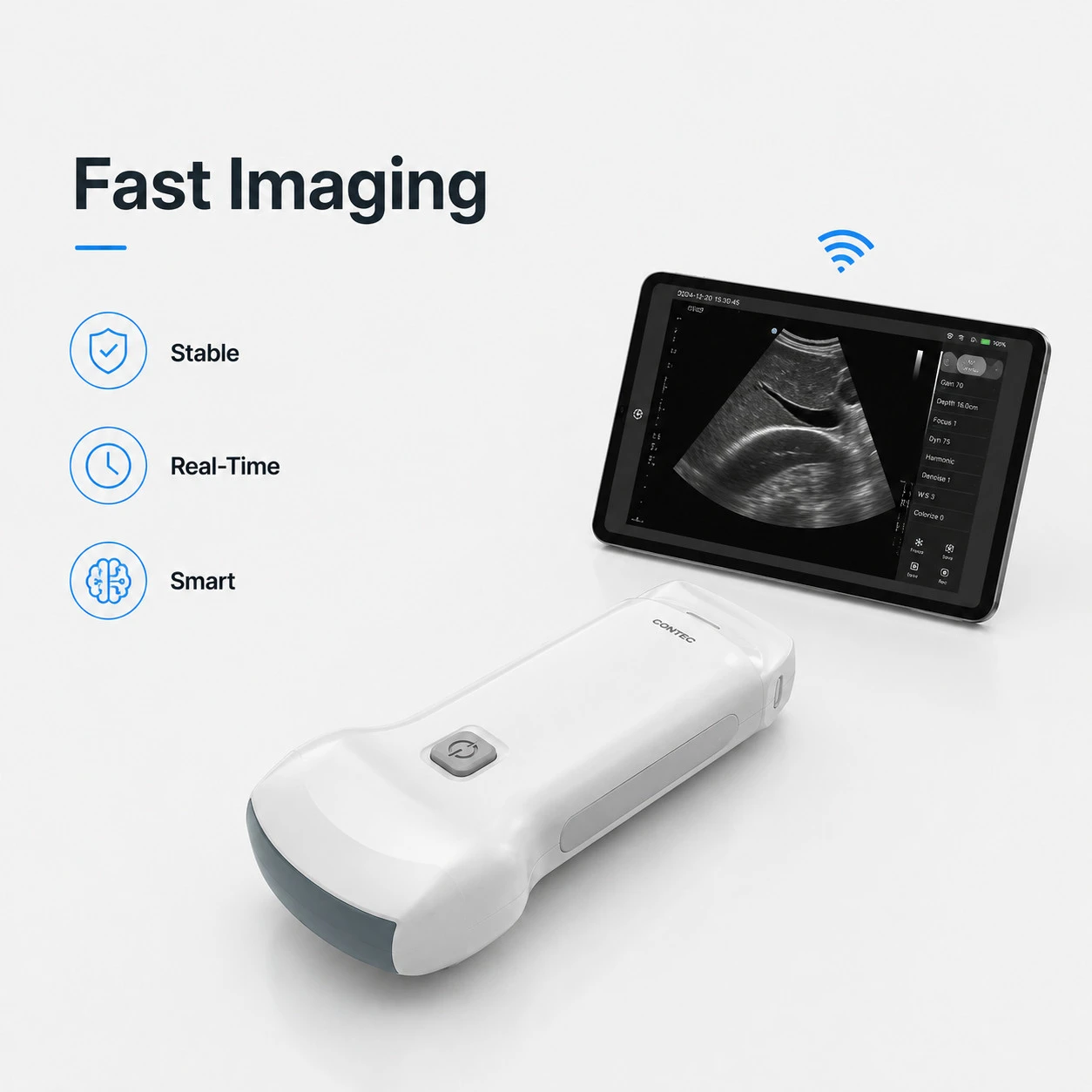

B / B-M / Color / PW Imaging
Multiple imaging modes provide grayscale anatomy, motion information, color blood-flow visualization and pulsed-wave Doppler assessment in one handheld platform.

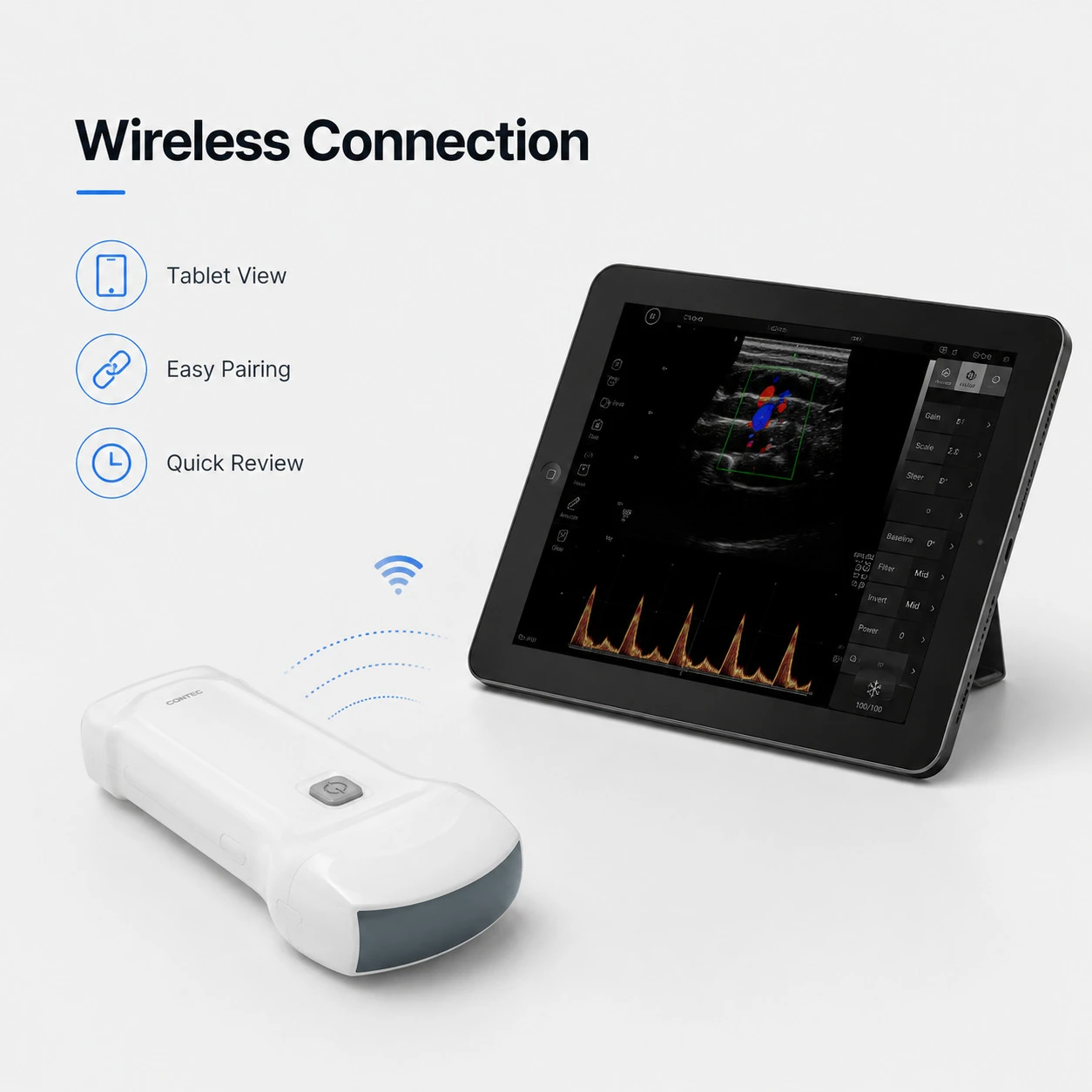

Real-Time Wi-Fi Display
Dedicated software connects to the probe by Wi-Fi and displays ultrasound images on a compatible mobile terminal. The effective wireless distance is at least 10 m in an open area.
Smart Controls & Measurement
Full-screen display, image flip, 8-segment TGC adjustment, patient management, cine-loop playback and measurement tools support efficient examination and review.
Flexible Charging & Data Storage
The reference configuration supports wireless charging, Type-C wired charging, USB connectivity and DICOM file storage for convenient mobile workflow.
Clinical Applications
With the appropriate probe configuration, the system can support abdominal, small-organ, urological, gynecological, obstetric and peripheral vascular ultrasound examinations.
