Medical grade infusion pump Hospital-grade infusion pump
High-precision infusion pump High-precision infusion pump
With its excellent high precision, the infusion pump can accurately control the infusion flow rate and dose. The minimum flow rate can reach 0.1ml/h, and the flow accuracy error is controlled in a very small range, such as ±1.8%-±5%, to ensure stable and safe drug delivery, and build a solid foundation for patient health.With intelligent programming function, a variety of infusion modes can be easily set according to the doctor's instructions, such as continuous infusion, intermittent infusion, titration infusion, etc., to adapt to different treatment needs.The portable design is lightweight and portable, weighing only a few hundred grams to a few thousand grams, with a built-in long-lasting battery and a battery life of more than 6 hours, which is convenient for home care or outdoor medical scenarios.The multi-channel model can infuse multiple liquids at the same time without interfering with each other, greatly improving work efficiency.The sensitive alarm system monitors the status of the infusion at all times. Once there is abnormality such as blockage, air bubbles, and the liquid will run out, it will immediately sound and light an alarm to ensure that the infusion is worry-free throughout the process. It is a trustworthy right-hand man in the medical field.
Product parameters
|
Infusion Principle |
Fingertip Peristaltic Pump |
|
|
I.V.Set Compatibility |
Open System, match all brands of qualified PVC,TPE I.V.sets with external diameter of 3.8mm-4.2mm |
|
|
Range of Flow Rate |
0.1-1200ml/h |
|
|
Infusion Mode |
Rate, Rate-Time, Rate-Volume, Time-Volume, Drop-Volume, Drop-Time, Body Weight |
|
|
Drug Library |
20 drug list with drug code display |
|
|
Purge/Bolus Rate |
1-1200ml/h,default 800ml/h, step by 1ml/h |
|
|
Single Bolus Volume |
1.0-10ml Adjustable, default 3 ml |
|
|
Time Preset |
00: 01~99: 59 (Hour: Min) |
|
|
Volume Range |
1~9999ml |
|
|
Drop Range |
1-400d/min, step by 1 drop |
|
|
Accuracy |
±5% |
|
|
Total Volume Infused |
0-9999 ml |
|
|
Occlusion Pressure |
High |
40 KPa±20KPa |
|
Middle |
60 KPa±20KPa |
|
|
Low |
100KPa±20KPa |
|
|
Air in line Detection |
Ultrasonic wave |
|
|
Visible & Audible Alarms |
Air in line, Down Stream Occlusion, Door Open, VTBI Completion, Near Completion, Low Battery, Battery Exhausted, Low Temperature, Motor Malfunction, A.C Disconnection, A.C connection, I.V set dislocation, MPU Error, Battery Charging, Battery Charging Completion, Circuit Malfunction |
|
|
K.V.O Rate |
1ml/h-5ml/h, default value 1ml/h, can be programmed by user step 0.1ml/h |
|
|
Internal Battery |
Lithium battery, 11.1/2000mAh, more than 4 hours working back up |
|
|
Power |
AC 100V-240V 50HZ/60HZ |
|
|
Classification |
Class II, Type CF, IPX4 |
|
|
Optional Function |
Ambulance DC 12V |
|
Product details

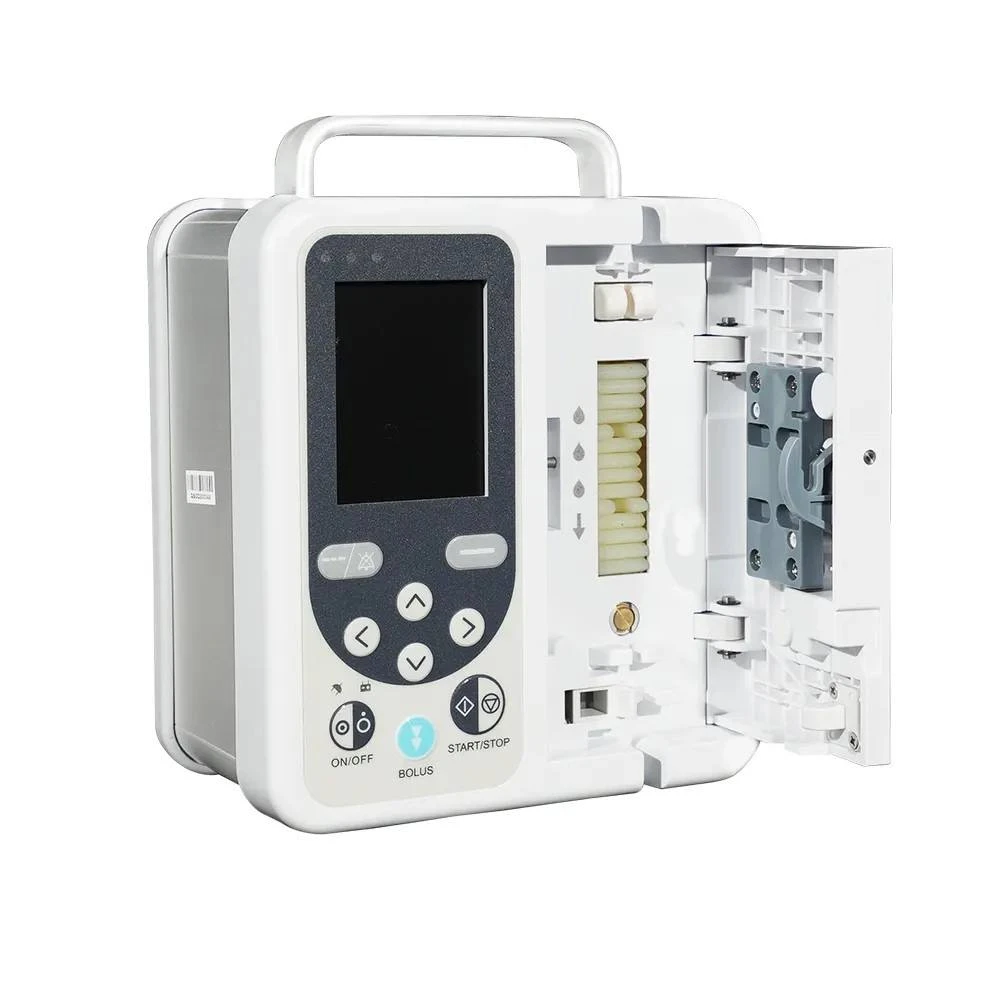

The product is a volumetricinfusion pump, features in highsafety,easy operation and longlife.Flow control with highaccuracy and comprehensivealarm measures ensurepatient's safety and optimumtherapeutic effect.
Why choose us?
Eurosun Technology ( Shanghai ) Co., Ltd. was founded in 2013.
The Headquarter is located in Shanghai City, Eurosun focus on the R&D manufacturing Medical equipment Related Products.

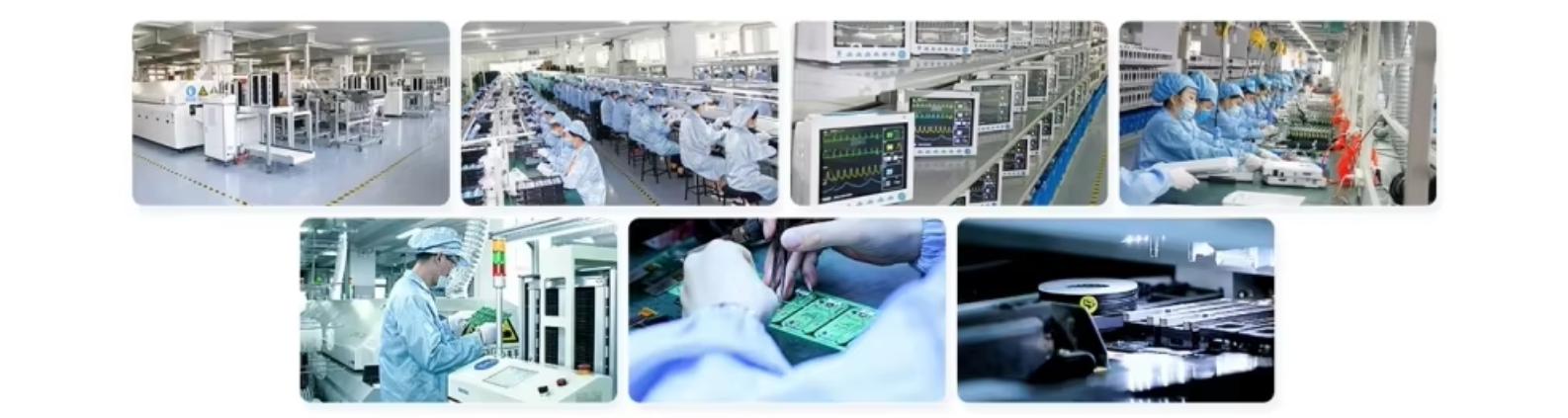

After more than 12 years of rapid development, Eurosun has been equipped with full process of advanced automation production equipment. Our company already got the National Medical Instrument Production License, CFDA, ISO, RoHS, CE and FDA Certificates.
510K, CE, ISO, RoHs Certified
12 Years Manufacturing Experience
Automated Production Line High Quality
Delivery
FedEx/DHL/UPS/TNT for samples, Door-to-Door
By Air or by Sea for mass production, Please advice Airport/ destination port
Customers specifying freight forwarders or negotiable shipping methods
Delivery Time: 3-5 days for samples; 5-10 days for mass production
