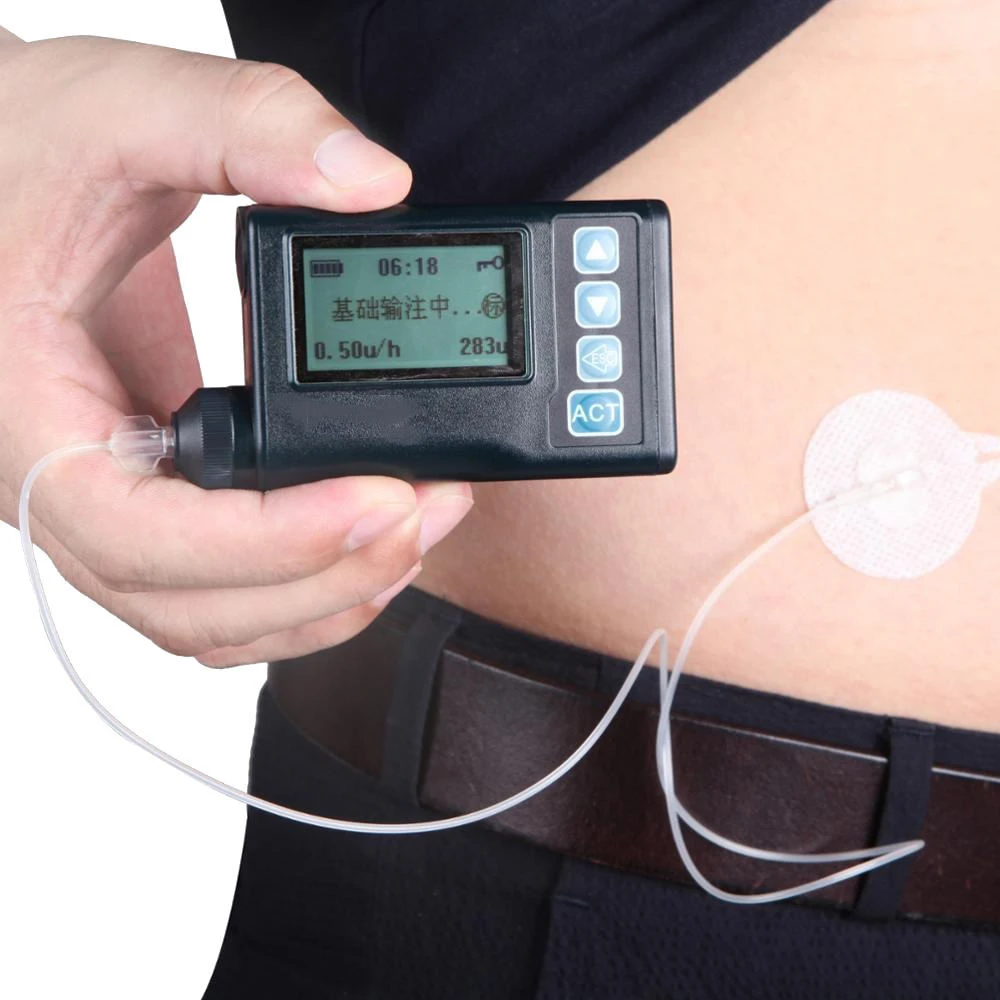

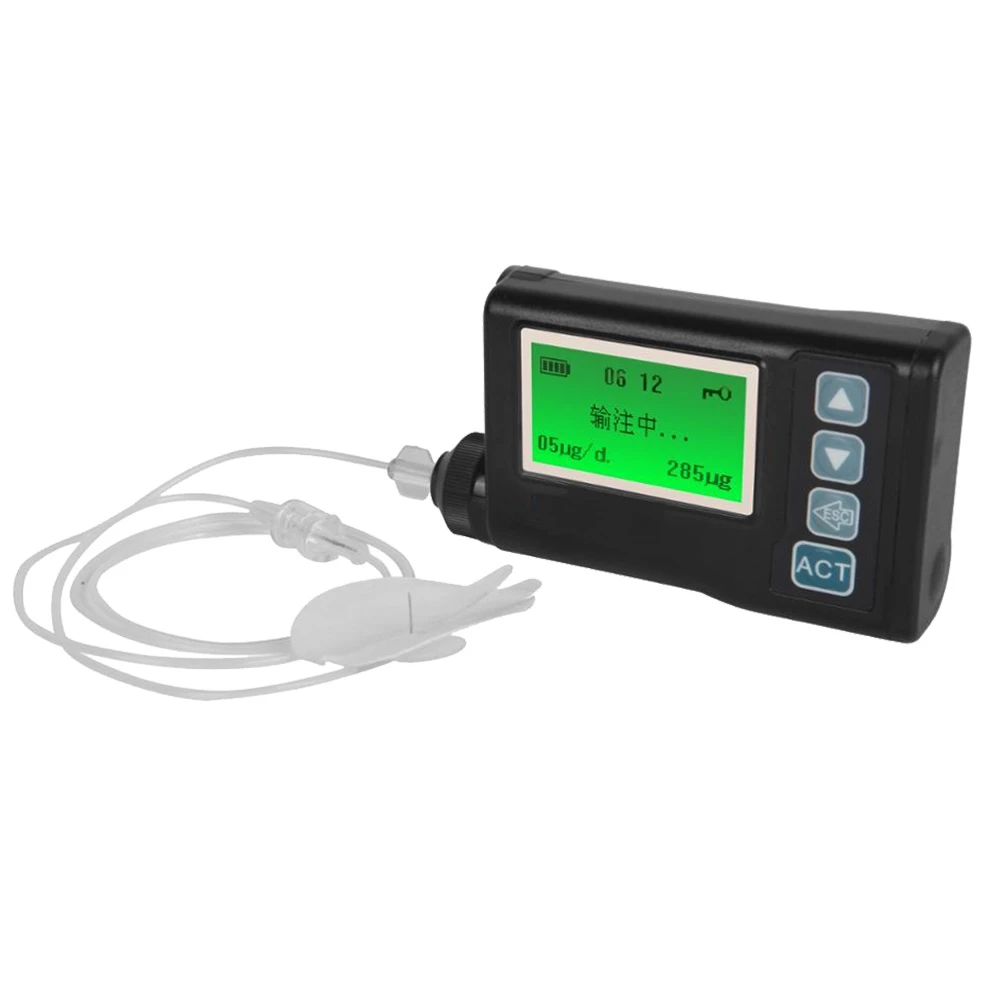

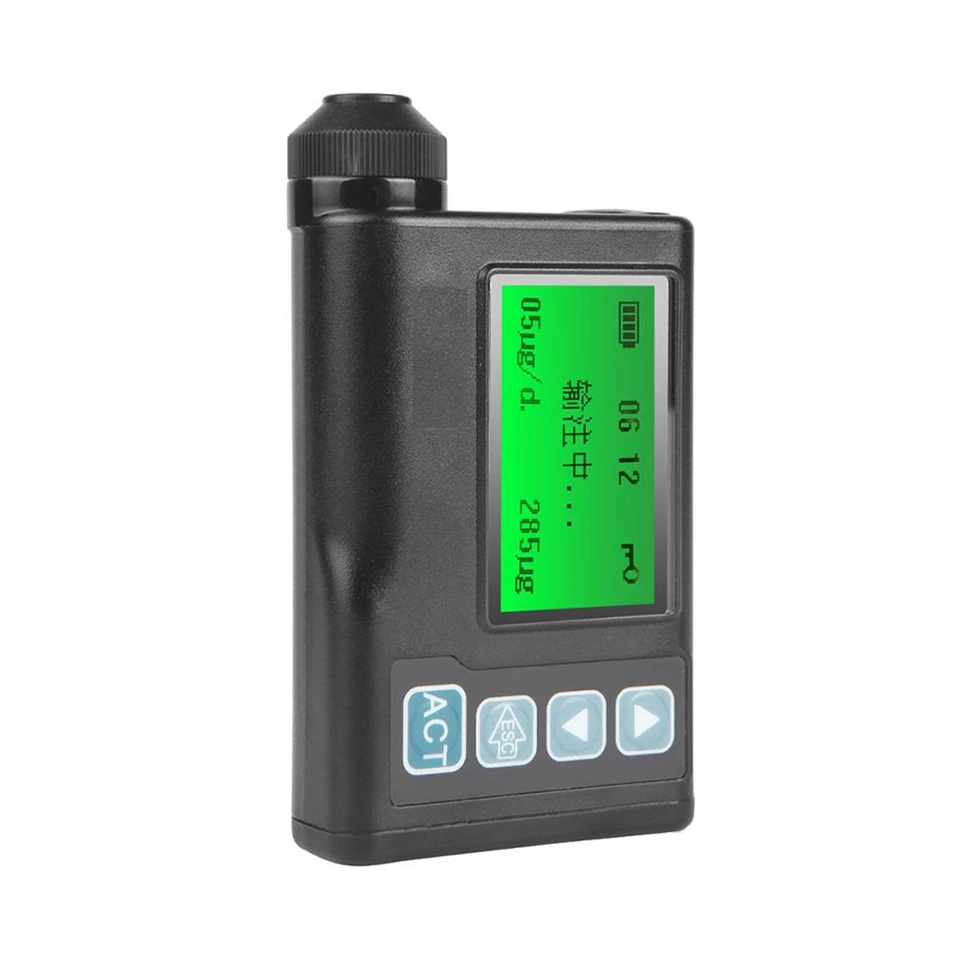

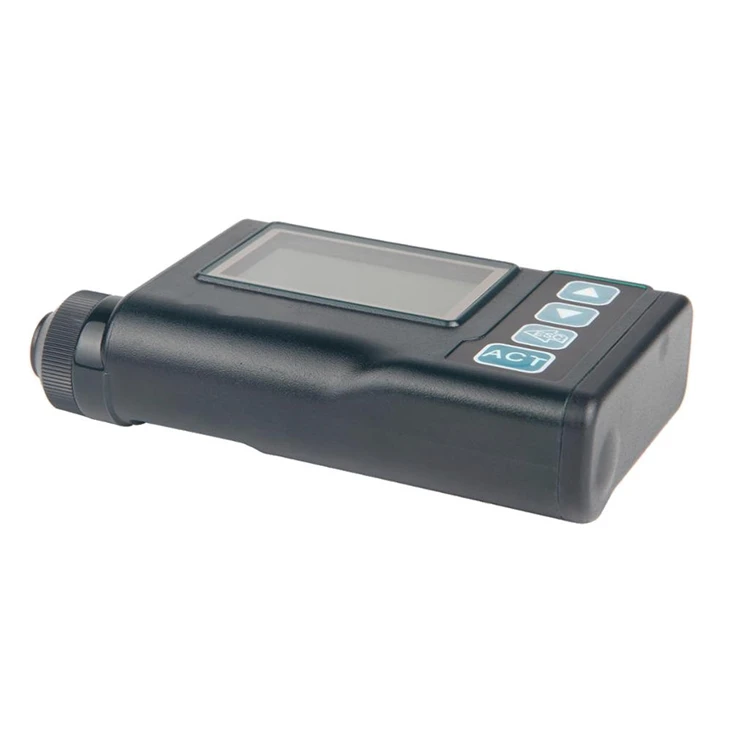

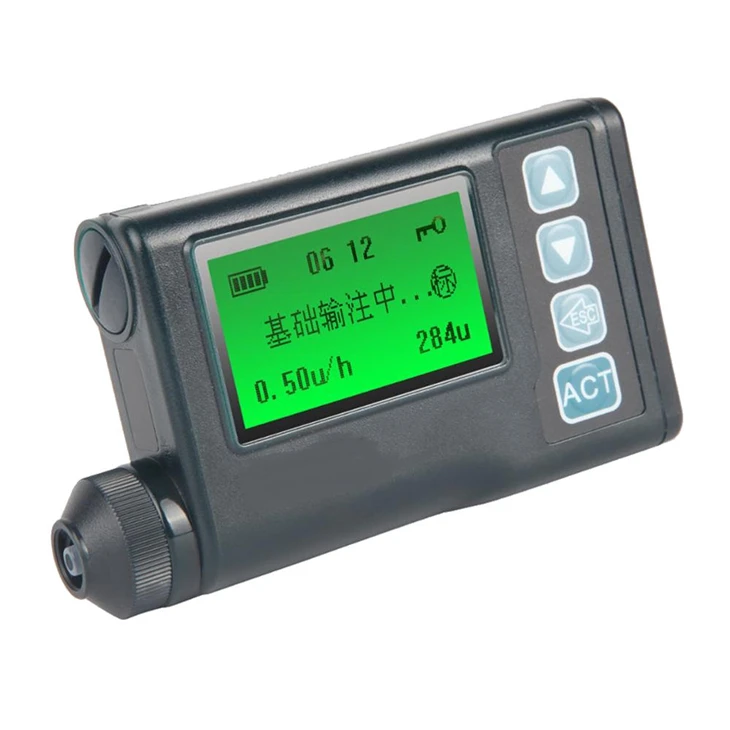

Insulin Pump

Product name

Insulin pump

Display

Liquid Crystal Display (LCD) with backlight, 128*64 dots. Auto display of remaining insulin, battery life, operation status, time
and basal rate; Simple list driven menu.

Dimensions

78*52*20mm

Net Weight

55 grams

Power Supply

1 AAA alkaline battery; Display with energy saving sleep mode.

Insulin Reservoir

24 basal rates; 305u

Infusion Frequency

1~60 times/hour

Basal Rate Setting

2u/hour (default); Min. 0.05u/hour; (1) General: 0~2u/hour; (2) For Doctor: 0~5u/hour.

Temporary Basal Rates

+/- up to 200% in 10% increments available for 24 hours

Basal Setting

20u (default); (1) General: 0~40u; (2) For doctor: 0~85u. Adjustable in fixed increments of 0.1u

Daily Total Setting

60u (default). (1) General: 60u; (2) For Doctor: 0~200u.

Filling Method

Auto reset for screw drove by motor; Auto calculate the filling insulin

Motor

Swiss micro DC motor

Safety

Safety Check: Dual microprocessors for continuous cross;
Safety Settings: Maximum bolus/Maximum basal/Maximum daily total/Low reservoir/ Line occlusion / Low battery/ Pump
malfunction/Meal time;
Suspension Mode: Manual Suspension;
Water Resistant: IPX7

Memory of History

Bolus: Last 50 boluses with time and date stamp; Auto memory for the last setting;
Daily: Last 50 daily insulin totals with time and date stamp;
Prime: Last 50 daily insulin totals with time and date stamp;
Alarm: Last 50 daily insulin totals with time and date stamp

Others

Color: Black;
Language: Chinese & English (preset one only in a device)
Standard Luer interface for infusion set, all brands of insulin sets use available

Environment

Condition of Operation: Temperature Range: 5°C~40°C; Air humidity (Relative humidity): 20%-90%; Barometric Pressure: 86kPa ~ 106kPa.
Condition of Storage/Transportation: Temperature Range: -20°C~50°C; Air humidity (Relative humidity): 10%-90%; Barometric Pressure: 50kPa ~ 106kPa.
