Electrocardiogram monitoring equipment accurately captures cardiac electrical activity with a precision of professional medical level, providing reliable basis for cardiac health assessment. Portable and wearable, it is lightweight and portable, does not affect daily activities, and can be monitored anytime and anywhere. Whether it is busy commuting, exercise and fitness, or falling asleep peacefully, it can continuously record the heart condition. Some devices have real-time monitoring functions, and data is immediately transmitted to mobile phones and other terminals. Abnormal situations are reported in a timely manner to safeguard health. The home use model is easy to operate, equipped with a clear large screen and a simple operation interface, making it easy for the elderly to get started and integrating heart health management into daily life
Product parameters
|
Items |
Specification |
|
Features |
7 "display, touch screen Support Ecg analysis capabilities |
|
Lead |
standard 12 leads |
|
lead acquisition |
synchronously 12 leads |
|
Input circuit |
Floating; Protection circuit against Defibrillator effect |
|
Input Impedance |
≥50MΩ |
|
Input circuit current |
≤0.0.05μA |
|
Record mode |
Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
|
Filter |
EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz |
|
CMRR |
>100dB |
|
Patient current leakage |
<10μA |
|
Input Circuit Current |
<0.05µA |
|
Frequency Response |
0.05Hz~150Hz (-3dB) |
|
Sensitivity |
2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
|
Anti-baseline Drift |
Automatic |
|
Time constant |
≥3.2s |
|
Noise level |
<15μVp-p |
|
Paper speed |
12.5 mm/s, 25 mm/s, 50 mm/s |
|
Recording mode |
Thermal printing system |
|
Paper specification |
Sun-7031:80mmx20m paper roll Sun-8062:120mmx20m paper roll |

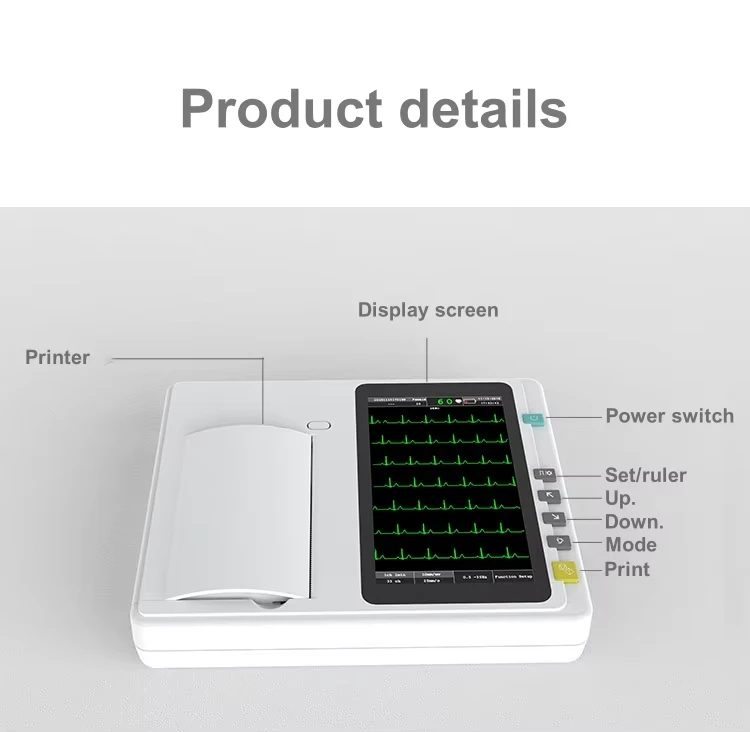

Product details

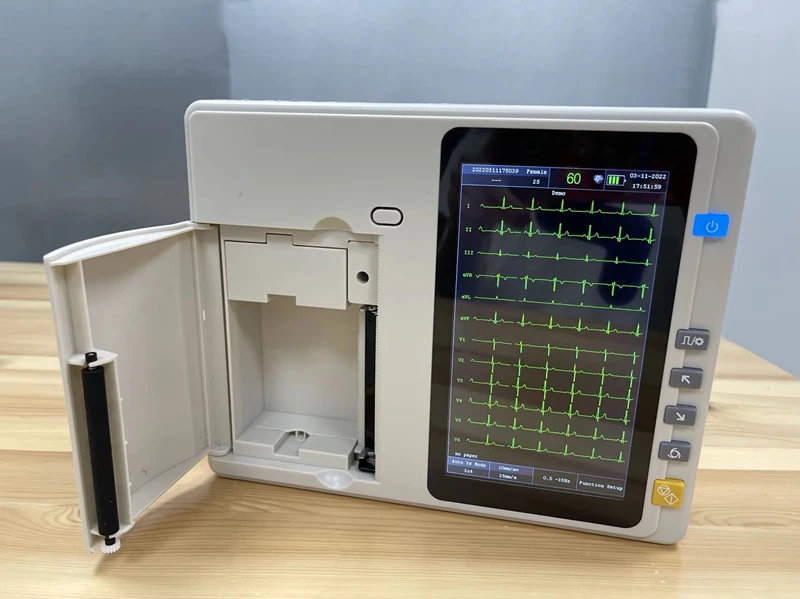

Simple and convenient operation, one key switch on the paper

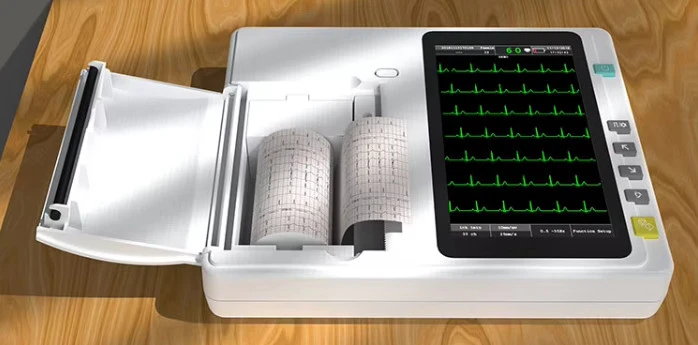

7 inch full touch screen plus set shortcut keys, to provide users with the most convenient way to operate. Printing paper bin one pull can open the installation, one press can close the lid, easy to operate.
Powerful storage capability More convenient data storage
Can be connected to external U disk /SD card to expand storage space, Storageand backup, playback and printing of historical data are realized at any time.
Built-in rechargeable battery Power off for 8 hours
Built-in rechargeable battery, in the case of power failure, sustainable work for 8hours uninterrupted monitoring, to provide more security for emergencies.
Automatic analysis of results
Automatic detection of all kinds of routine diseases caused by abnormalelectrocardiogram, so that medical workers can find problems and treat patients intime.

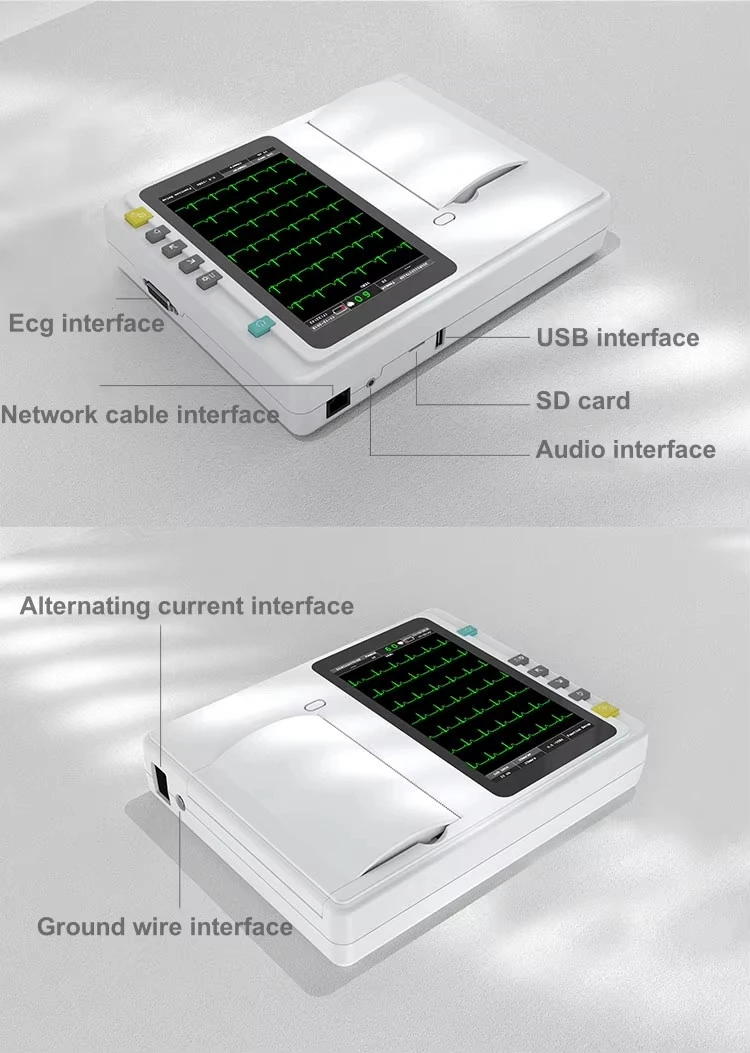

Support roll paper/folding paper, and external USB devices(keyboard, mouse, scannerprinter), allows USB cable transmission for automatic case upload,report download.and printing.

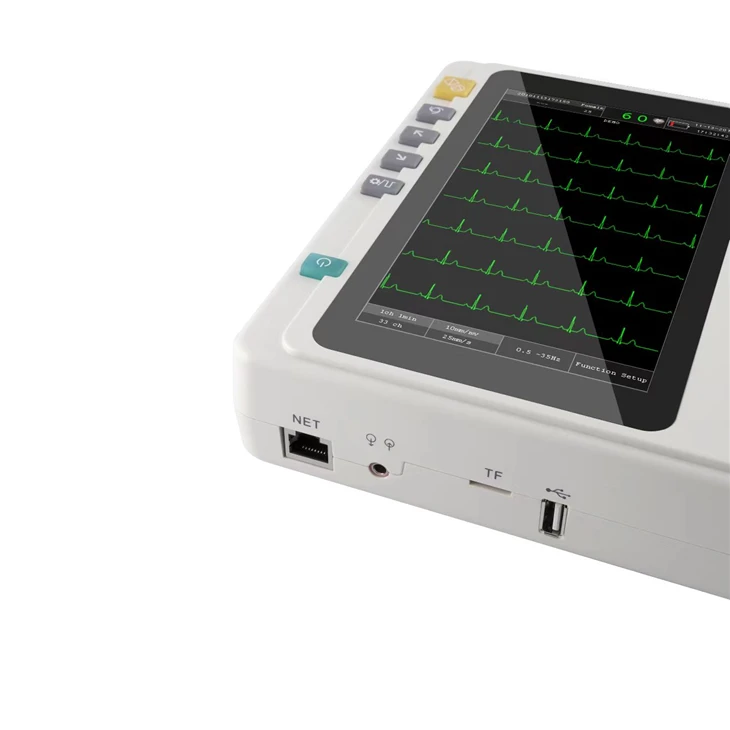

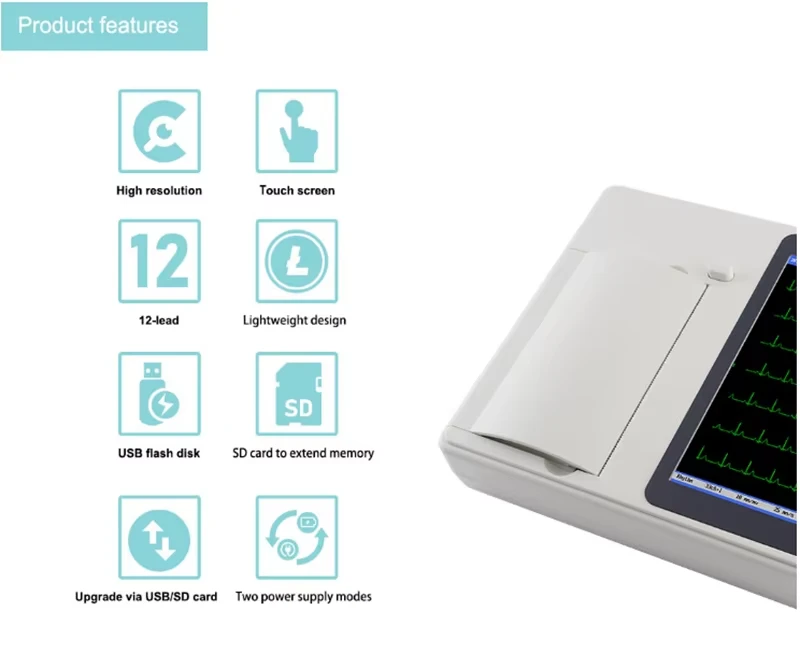

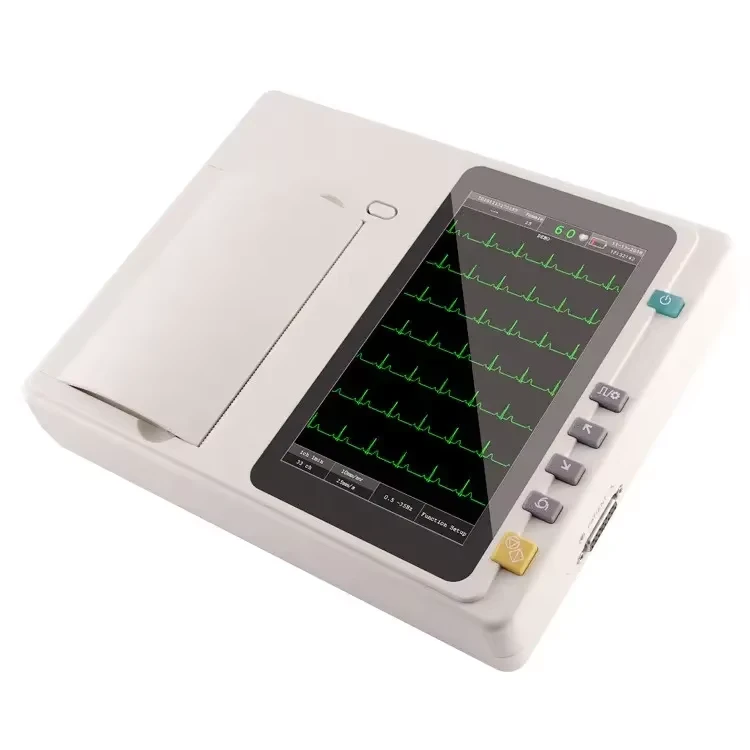

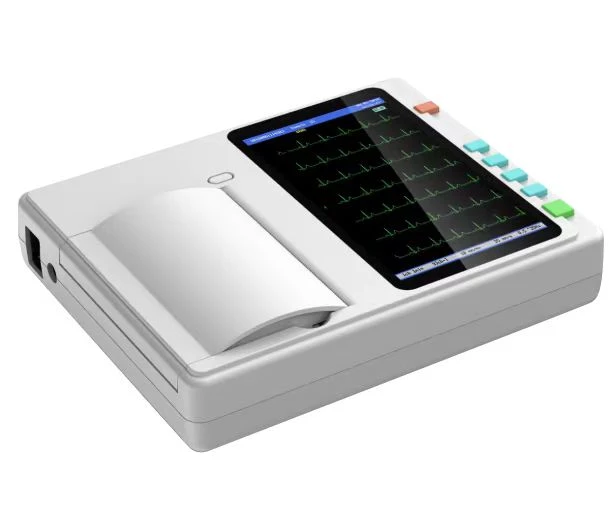

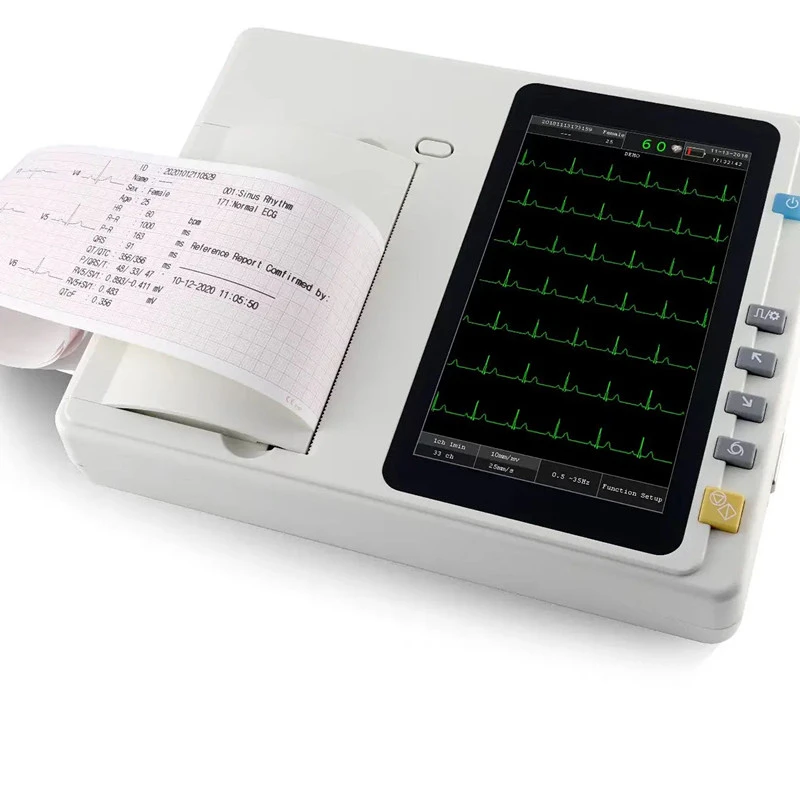

(1)7 inch high resolution color touch screen.
(2)12-lead simultaneous acquisition and display.
(3)ECG Automatic measurement and interpretation function.
(4)Complete digital filters, resisting baseline drift, AC and EMG interference.
(5)Support USB flash disk and micro SD card to extend memory.
Why choose us?

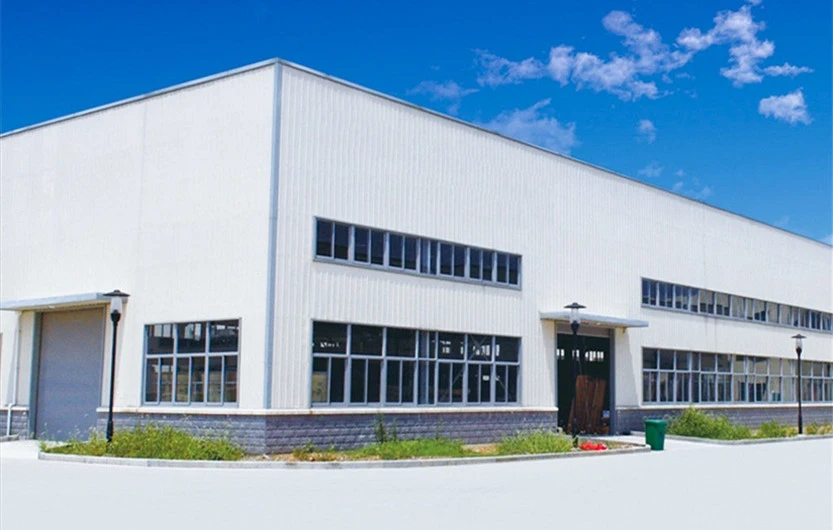

Eurosun Technology ( Shanghai ) Co., Ltd. was founded in 2013.
The Headquarter is located in Shanghai City, Eurosun focus on the R&D manufacturing Medical equipment Related Products.

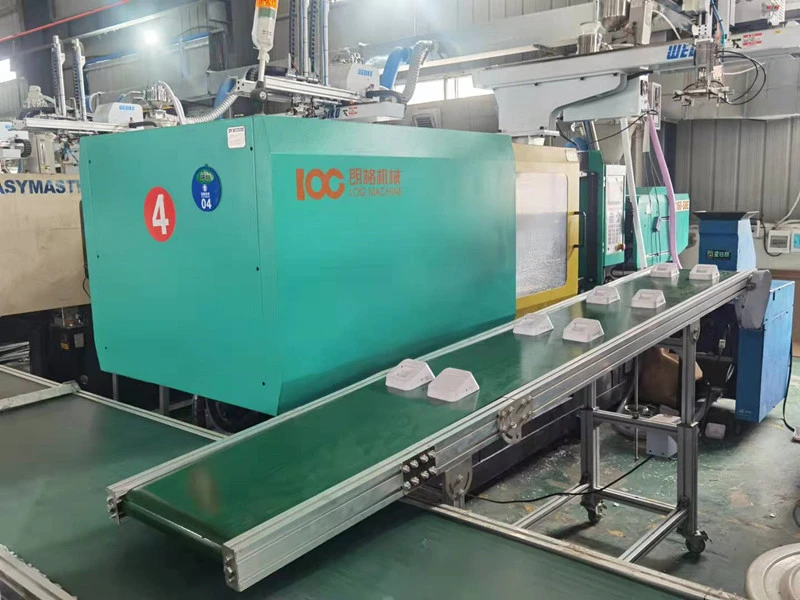

After more than 12 years of rapid development, Eurosun has been equipped with full process of advanced automation production equipment. Our company already got the National Medical Instrument Production License, CFDA, ISO, RoHS, CE and FDA Certificates.
