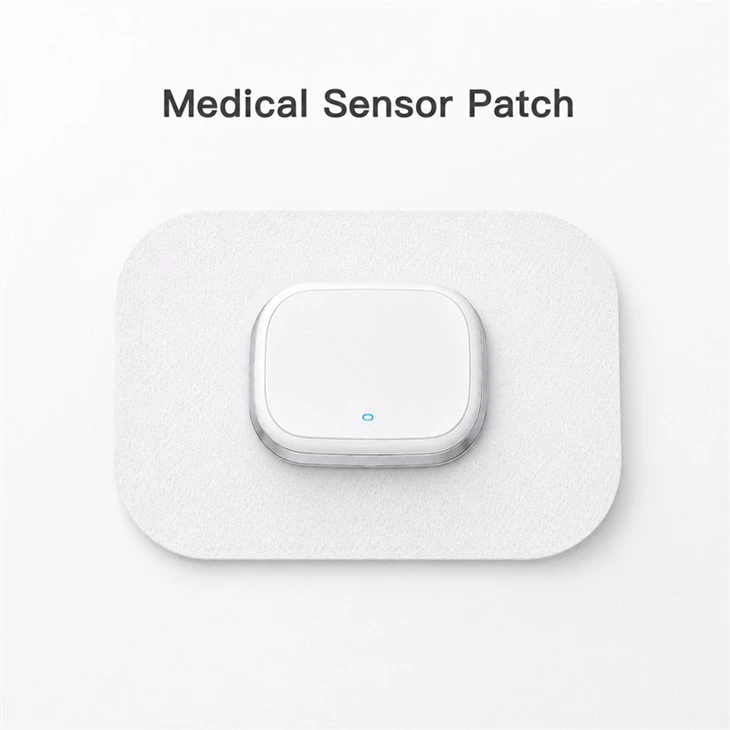

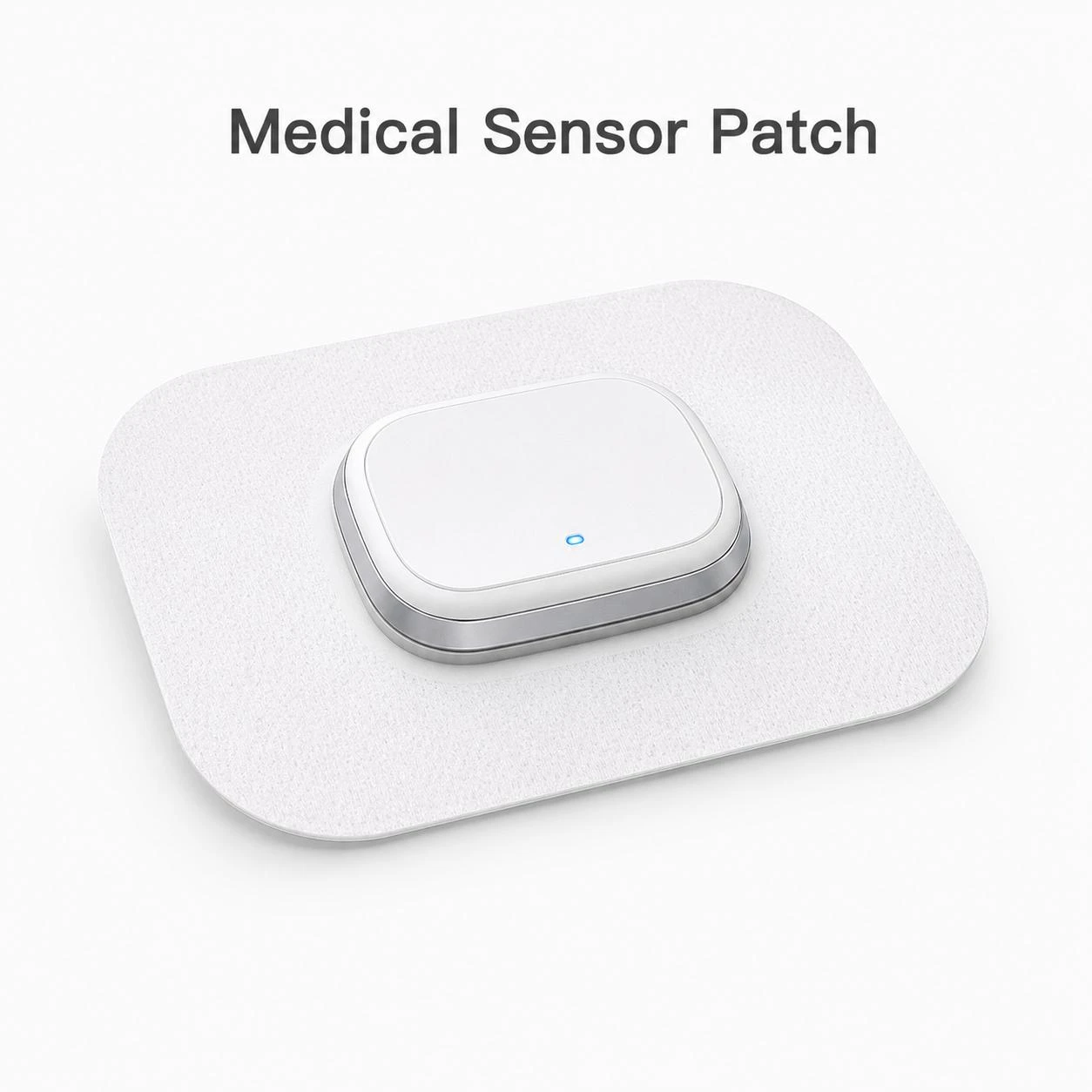

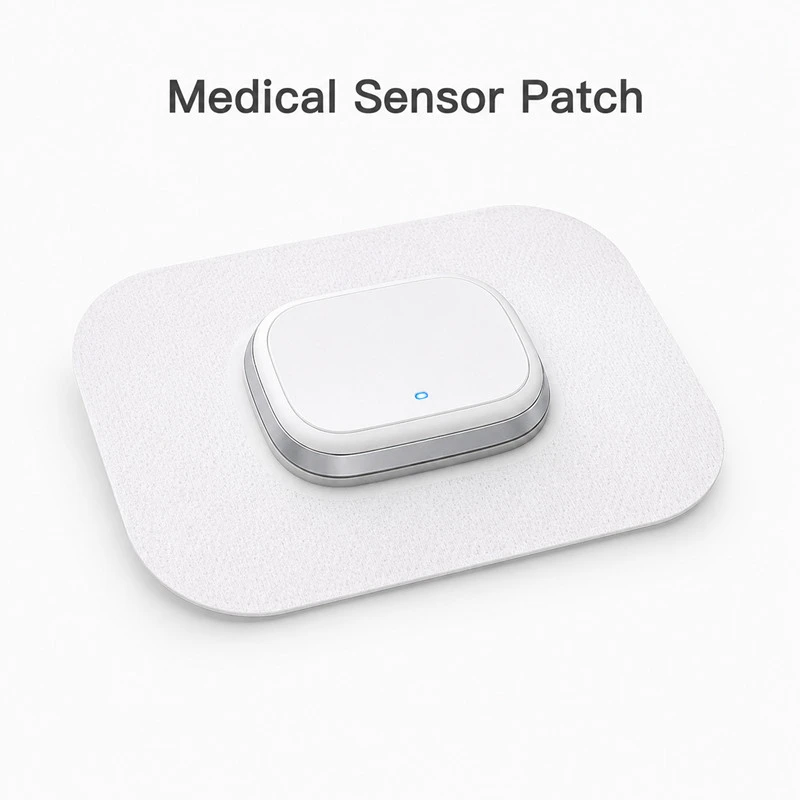

1. Wearable single-lead ECG sensor patch designed for ambulatory, home and remote cardiac monitoring.
2. Supports continuous ECG recording for up to 72 hours to help capture intermittent rhythm events during daily activity.

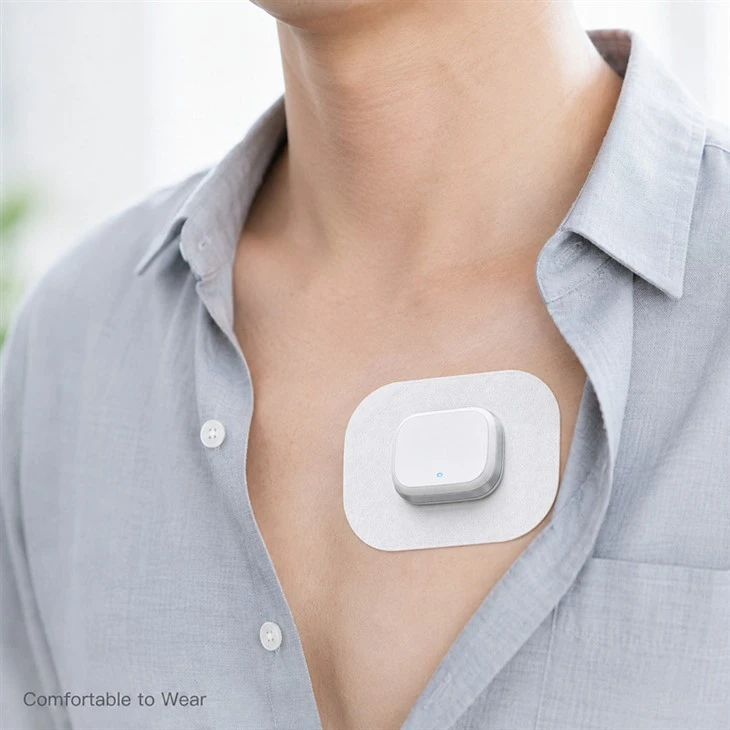

3. Compact and lightweight construction is designed for comfortable extended wear with patch or disposable electrode options.
4. Bluetooth connectivity enables ECG data synchronization with compatible mobile applications and computer software.
Rechargeable power, local ECG storage and manual event marking support convenient long-term monitoring workflows.
Product parameters
|
Product |
Medical Sensor Patch / Wearable Single-Lead ECG Monitor |
|
Lead Type |
Single-Lead ECG |
|
ECG Recording Time |
5 min to 24 h / up to 72 h |
|
Device Dimensions |
100 x 23 x 8.3 mm |
|
Device Weight |
<18 g (including battery) |
|
Battery |
Rechargeable polymer battery, 3.8 V DC, 240 mAh |
|
Wireless Connectivity |
Bluetooth |
|
Local Storage |
10 ECG sessions, up to 72 h total |
|
Frequency Response |
0.67-40 Hz |
|
Input Impedance |
>=10 MOhm at 10 Hz |
|
Common Mode Rejection |
>=60 dB |
|
Gain Error |
Max. +/-10% |
|
Application |
Ambulatory / home / remote ECG monitoring |
Reference configuration based on current wearable ECG patch listings; final OEM specifications may vary by model.
Product details

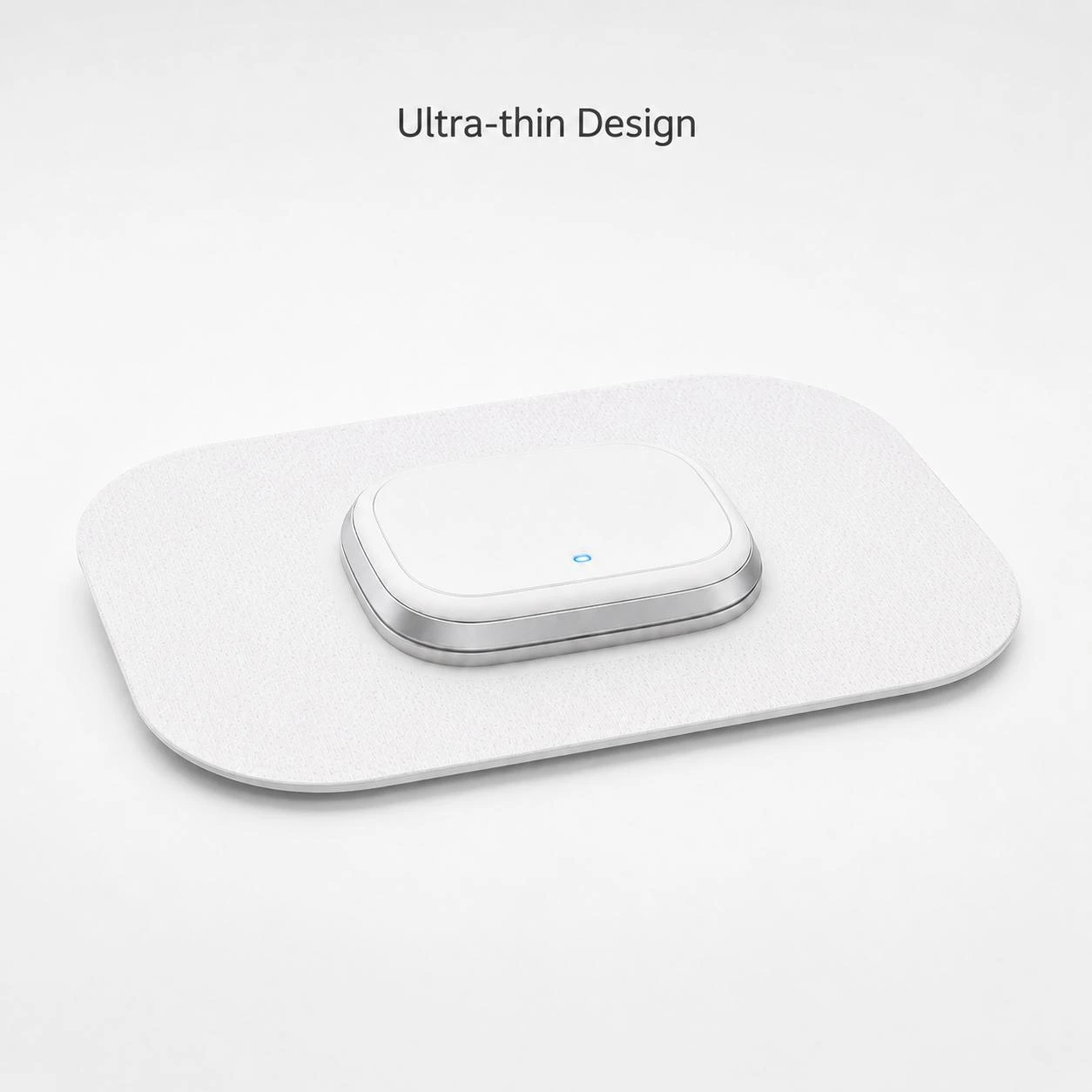

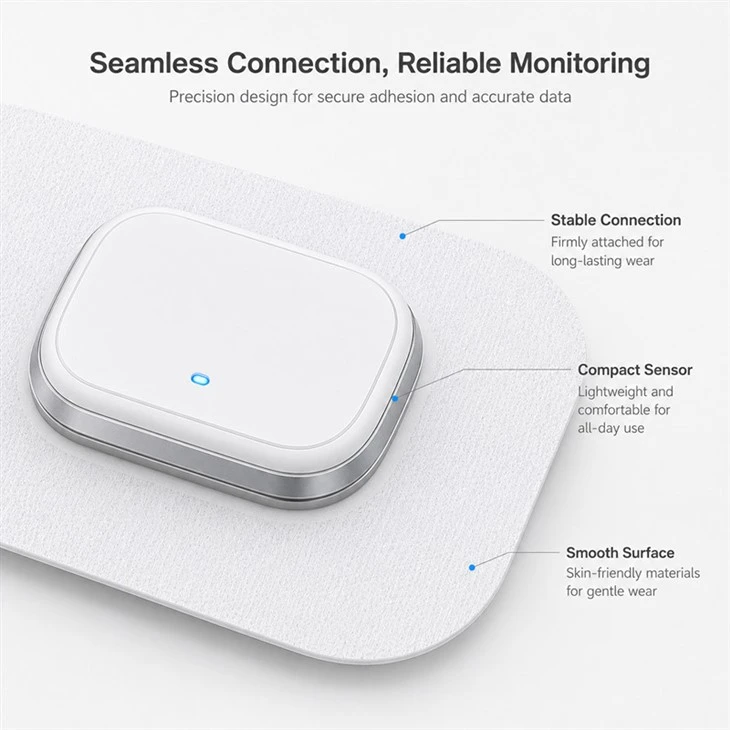

Ultra-thin & Lightweight Wearable Design
* Compact body weighing under 18 g helps reduce wearing burden during extended ECG monitoring.

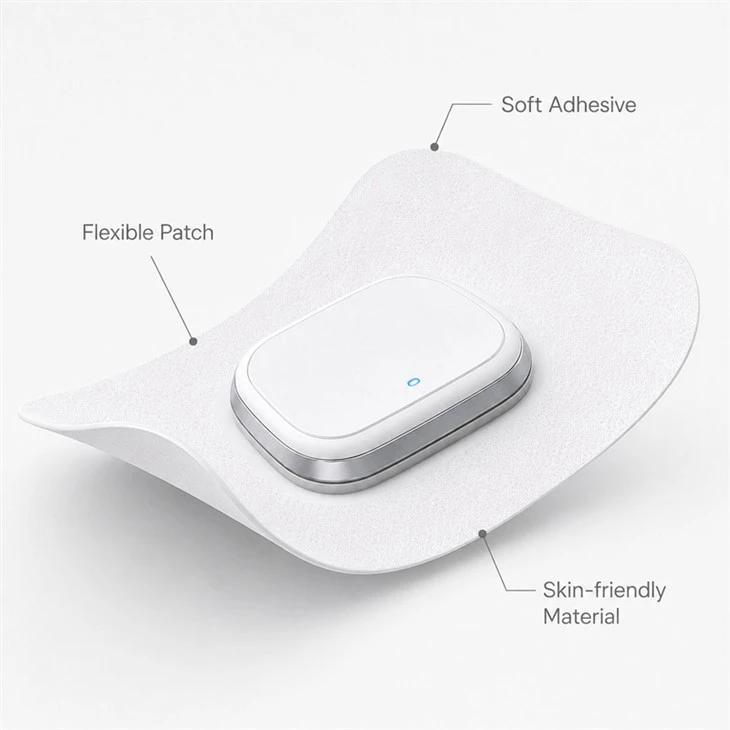

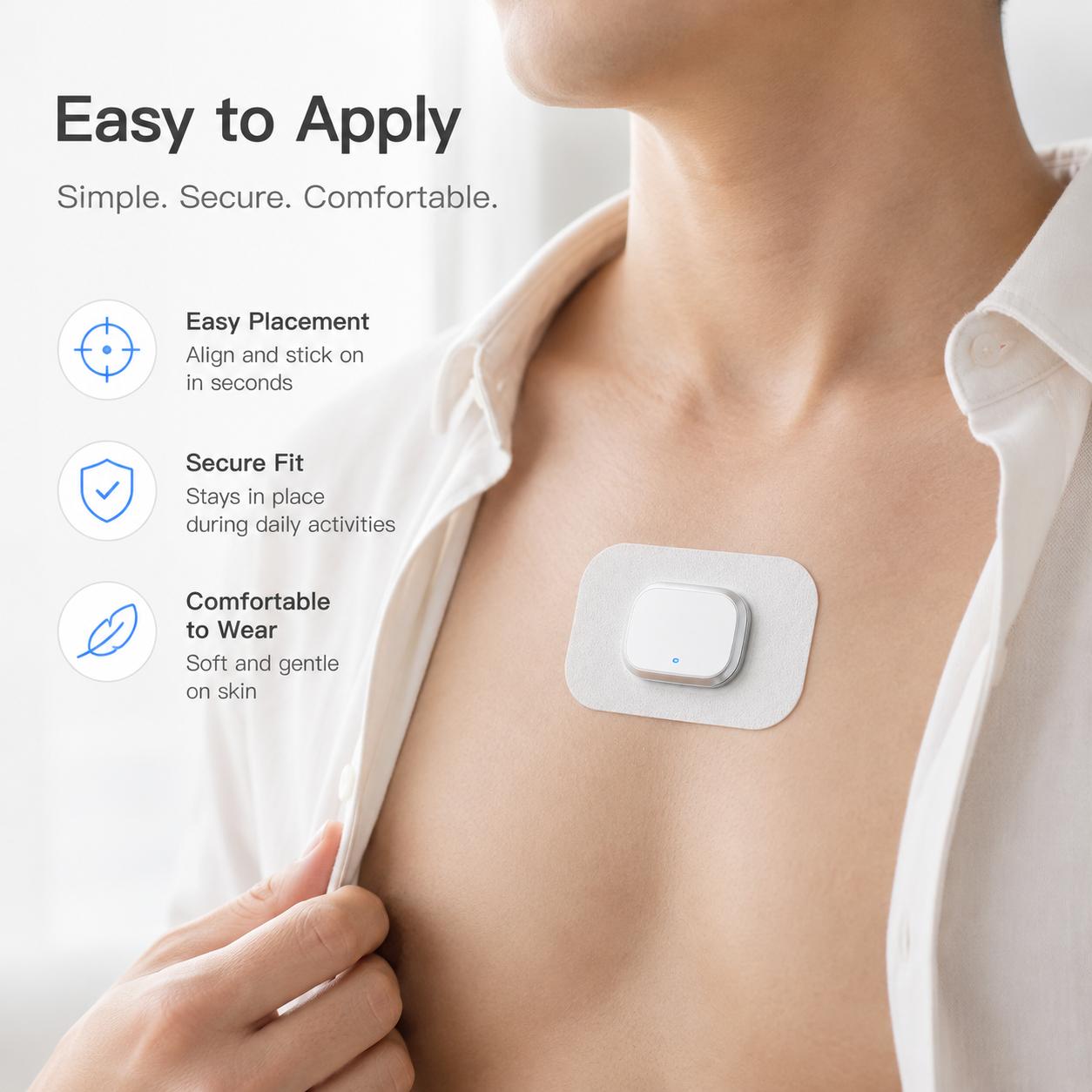

* Flexible patch/electrode wearing options support secure skin contact and comfortable daily activity.
* Low-profile construction is suitable for ambulatory, home and remote monitoring scenarios.

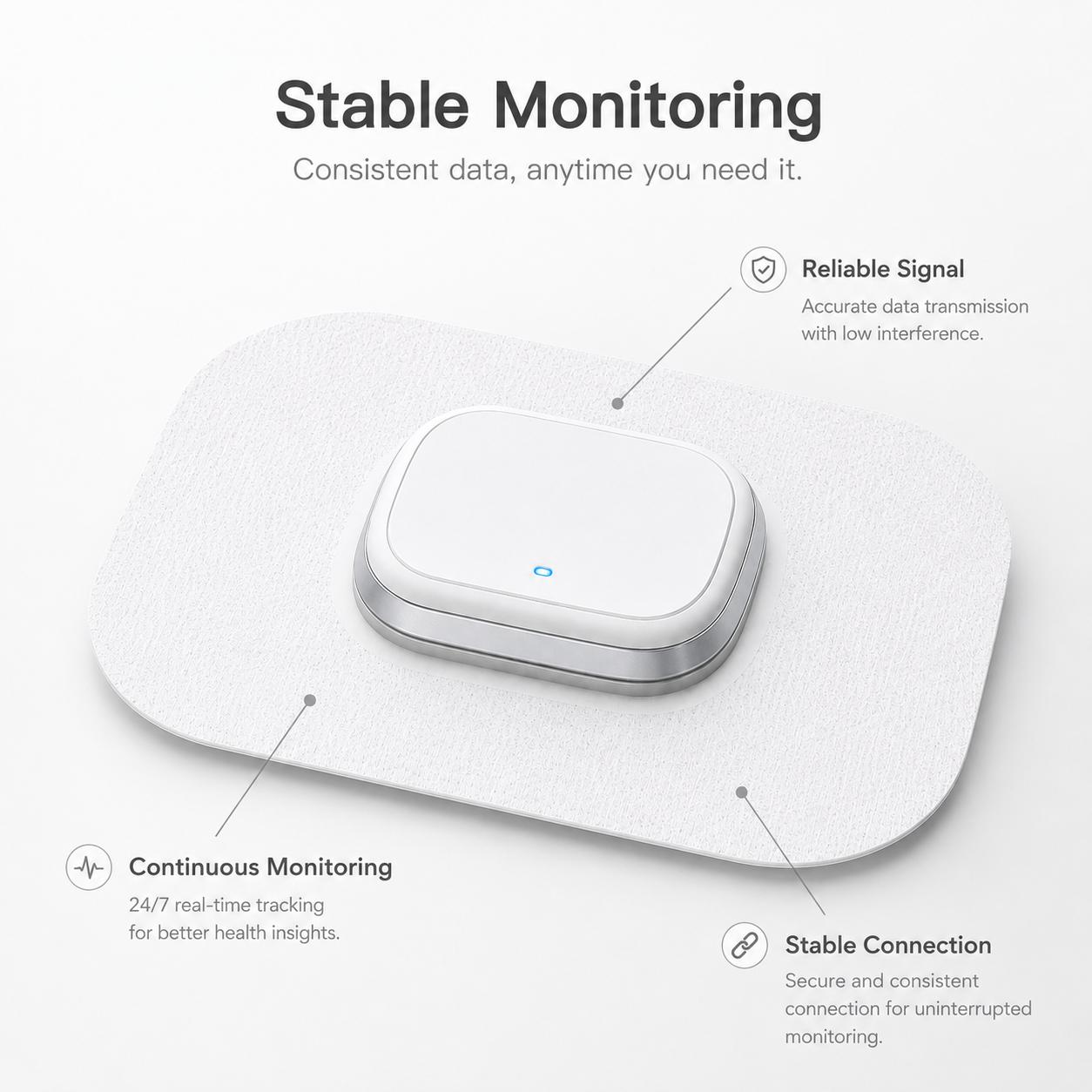

Continuous ECG & Wireless Data Transmission
* Records single-lead ECG continuously for up to 72 hours and stores up to 10 ECG sessions locally.
* Bluetooth supports wireless data synchronization with compatible software and mobile applications.
* Manual event marking helps users flag symptomatic moments for later ECG review.
Why choose us?
Eurosun Technology ( Shanghai ) Co., Ltd. was founded in 2013.
The Headquarter is located in Shanghai City, Eurosun focus on the R&D manufacturing Medical equipment Related Products.
After more than 12 years of rapid development, Eurosun has been equipped with full process of advanced automation production equipment. Our company already got the National Medical Instrument Production License, CFDA, ISO, RoHS, CE and FDA Certificates.
510K, CE, ISO, RoHs Certified
12 Years Manufacturing Experience
OEM/ODM Service
Delivery
FedEx/DHL/UPS/TNT for samples, Door-to-Door
By Air or by Sea for mass production, Please advice Airport/ destination port
Customers specifying freight forwarders or negotiable shipping methods
Delivery Time: 3-5 days for samples; 5-10 days for mass production
